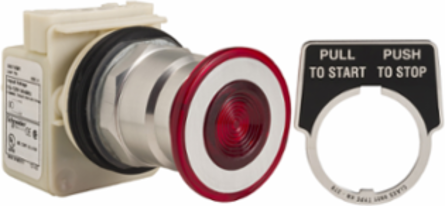

Schneider Electric 9001KR8P1R Harmony 9001K Metal Push Button, 41mm Mushroom Head, 30mm Mount, 110-120V

MPN: 9001KR8P1R
UPC: 785901384335
PPN: SCH-9001KR8P1R
UNSPSC: 39122216

$259.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, modular illuminated red push button with screw-in head operates with spring return mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Complementary Attributes

Us Rated Supply Voltage	110...120 V

Important Information Attributes

Operator Profile	mushroom Ø 41 mm, flush
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	9001K
Device Short Name	9001K
Mounting Diameter	30 mm
Operator Position Information	3 positions
Product Or Component Type	head for illuminated push-button
Returnability	Yes
Sustainable Packaging	Yes
Cap/Operator Or Lens Colour	red
Customs Code	8538908180

Type Of Operator	spring return, pull : spring return, center : stay put, push : spring return
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bezel Material	metal
Contacts Type And Composition	without contact block
Light Block Supply	via integral transformer
Operator Additional Information	screw-on plastic
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
