Schneider Electric 9001KM35LR Harmony 9001K Light Module 30mm, LED Red, 24-28V
- MPN: 9001KM35LR
- UPC: 785901177401
- PPN: SCH-9001KM35LR
CAD
$147.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

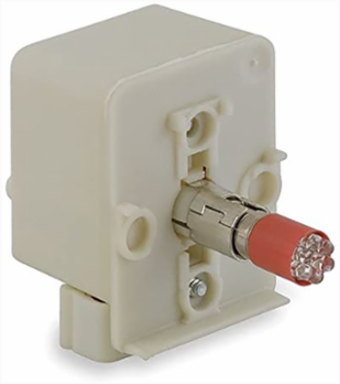

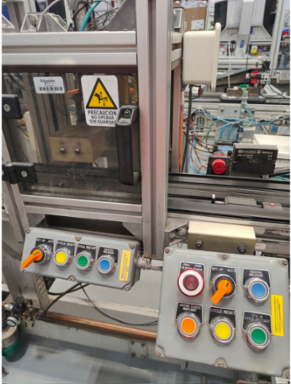

Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.
Features
- Engineered as a full-voltage light module with an integrated resistor, this component is optimized for 24-28V AC/DC signaling applications within the Harmony 9001K range. This versatile voltage rating allows industrial engineers to standardize their spare parts inventory across multiple machines, ensuring a reliable fit for diverse 30mm pilot light and illuminated push-button configurations.
- Featuring a high-intensity red LED lamp, this module is built to withstand the constant vibration and mechanical shock typical of heavy-duty manufacturing floors. Unlike traditional incandescent bulbs that burn out frequently, this solid-state LED solution provides thousands of hours of maintenance-free illumination, significantly reducing labor costs and machine downtime for routine bulb swaps.
- Constructed with the signature 9001K heavy-duty metal body, this light block provides exceptional resistance to chemical exposure and physical impact. Its robust design ensures a gas-tight, secure connection even in demanding oil-tight and dust-tight environments, making it the ideal choice for automotive assembly lines, petrochemical plants, and wastewater treatment facilities.
- Designed for seamless integration with the industry-standard 30mm mounting hole, this module allows for rapid, tool-free installation into existing Schneider Electric Harmony control stations. The plug-and-play design ensures perfect physical alignment with your existing lenses and contact blocks, allowing for quick field upgrades from standard pilot lights to high-visibility LED status indicators without requiring panel modifications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Product Or Component Type | light module, light block |
| Certificate Agency | UL Listed, CSA, NEMA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.03927191429621943, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0005357807567982101, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Bulb Base | BA 9s |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Light Source | LED (bulb included) |
| Protective Treatment | TC |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 49 |
| Package Weight(Lbs) | 72.6 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
| [Us] Rated Supply Voltage | 24...28 V AC 50...60 Hz, 24...28 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.1594941734381087 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.3962036601455505 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | 9001K |
| Light Block Supply | direct via integral resistance 0.28 VA |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 0.6 kg CO2 eq. |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809051 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -13-158 °F, -25-70 °C, -13-158 °F |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.5955055286366768 |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP10 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | light module, light block |
|---|
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
