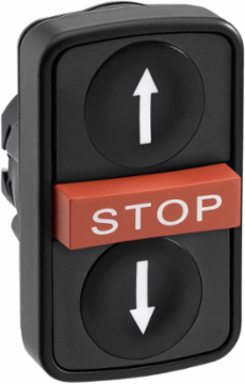

Schneider Electric ZB5AA72124 Harmony XB5 Triple Head Push Button Ø22 mm, IP66/IP69K, 3 Functions
- MPN: ZB5AA72124
- PPN: SCH-ZB5AA72124
CAD
$66.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Mounting Diameter
- 22 mm
- Operators Description
- black ''up arrow'' - black ''down arrow'' - red ''STOP''
- Shape Of Signaling Unit Head
- rectangular
- Operator Profile
- 2 flush - 1 central projecting STOP push-buttons
Bezel Materialdark grey plastic
Type Of Operatorspring return
Product Or Component Typehead for triple-headed push-button
Device Short NameXB5
Head Typestandard
Complementary
- Operator Profile
- red projecting, STOP white) || black flush, down arrow white) || black flush, up arrow white)
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

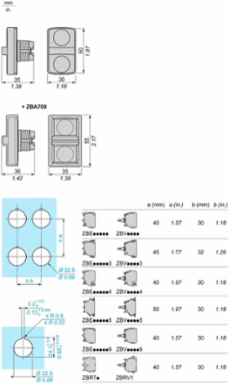

- Cad Overall Width
- 30 mm
- Cad Overall Depth
- 35 mm
- Cad Overall Height
- 50 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Station NameXALD 1 cut-out
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
Net Weight0.023 kg
Device Presentationbasic element
Environment
- Product Certifications
- UL listed || GL || LROS (Lloyds register of shipping) || CSA || DNV || BV
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Electrical Shock Protection Class
- class II IEC 61140
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree Of ProtectionIK05 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP67 IEC 60529 || IP69 IEC 60529 || IP69K
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
