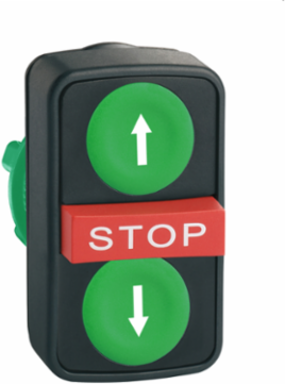

Schneider Electric ZB5AA73134 Harmony XB5 Triple-Headed Push Button 22 mm, IP67/IP69K, 1 Red & 2 Green Buttons
- MPN: ZB5AA73134
- PPN: SCH-ZB5AA73134
CAD
$66.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 green buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Color Of Marking
- white/white/white, white marking when green, red or black caps, black marking when white capswhite marking when green, red or black caps

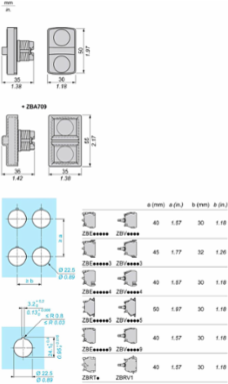

- Cad Overall Height
- 50 mm
Cad Overall Depth35 mm
Cad Overall Width30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Operator Profile
- red projecting, STOP white), green flush, down arrow white), green flush, up arrow white), 2 flush - 1 central projecting STOP push-buttons
- Color Of Marking
- white/white/white, white marking when green, red or black caps, black marking when white capswhite marking when green, red or black caps
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.04202860408494587
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.17233784694803106
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 6 %
- Compatibility Code
- XB5
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Head Type
- standard
- Marking
- up arrow/STOP/down arrow
- Mounting Diameter
- 22 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2303008_V2
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile 1 Cap Operator Or Lens Colorgreen
Carbon Footprint Of The Distribution Phase [A4]0.008119283758000759, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.006130632943728771, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content29 %
Bezel Materialdark grey plastic
Device Short NameXB5
Group Of Productflush/proj/flush marked
Main Grouptriple head push-button
Mechanical Durability1000000 cycles
Operators Descriptiongreen ''up arrow'' - green ''down arrow'' - red ''STOP''
Product Or Component Typehead for triple-headed push-button
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headrectangular
Station NameXALD 1 cut-out
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Cap/Operator Or Lens Colourgreen/red/green
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529, IP69 IEC 60529, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 29 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.22861636773470645
- Environmental Disclosure
- ENVPEP2303008_V2
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303008_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for triple-headed push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
Loading carousel layout...
Loading carousel layout...
