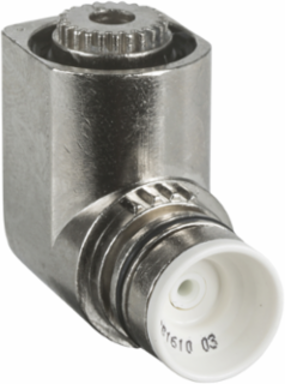

Telemecanique Sensors ZCE016 Limit switch head, Limit switches XC Standard, spring return for actuation
- MPN: ZCE016
- PPN: TES-ZCE016
- UNSPSC: 39122213
CAD
$27.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, spring return for actuation
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Associated Lever | ZCY15 || ZCY17 || ZCY59 || ZCY55 || ZCY54 || ZCY81 || ZCY48 || ZCY91 || ZCY25 || ZCY22 || ZCY39 || ZCY12 || ZCY44 || ZCY53 || ZCY46 || ZCY45 || ZCY26 || ZCY16 || ZCY18 || ZCY19 || ZCY49 || ZCY23 || ZCY69 |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKD || XCKT || XCKP || XCMD |
| Head Type | rotary head |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Type Of Operator | roller plunger spring return metal |
| Associated Body | ZCT21G11 || ZCMD41L5 || ZCMD37L5 || ZCD35 || ZCMD21L2 || ZCMD25L2 || ZCMD41L2 || ZCMD29L2 || ZCMD39L5 || ZCD27 || ZCT28G11 || ZCMD61M12 || ZCMD21C12 || ZCD31 || ZCP28 || ZCP27 || ZCD25 || ZCT27N12 || ZCMD21M12 || ZCMD37L2 || ZCT25P16 || ZCP29 || ZCT28N12 || ZCMD21L08R12 || ZCMD81L2 || ZCT27G11 || ZCMD37L1 || ZCT25N12 || ZCT26P16 || ZCP26 || ZCP37 || ZCT21P16 || ZCMD39L1 || ZCMD21L1 || ZCD29M12 || ZCMD25L5 || ZCD39 || ZCMD29C12 || ZCD29 || ZCT26G11 || ZCP31 || ZCP25 || ZCMD29L1 || ZCMD61C12 || ZCMD21L5 || ZCMD81L1 || ZCMD41L1 || ZCT26N12 || ZCP21 || ZCT28P16 || ZCMD29L5 || ZCT27P16 || ZCD28 || ZCP29M12 || ZCP35 || ZCP21M12 || ZCD26 || ZCMD39L2 || ZCD21M12 || ZCP39 || ZCMD69C12 || ZCMD21L08U78 || ZCMD81L5 || ZCD37 || ZCT21N12 || ZCT25G11 || ZCD21 || ZCMD25L1 |
| Device Short Name | ZCE |
Complementary
| Positive Opening | with |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
Environment
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
