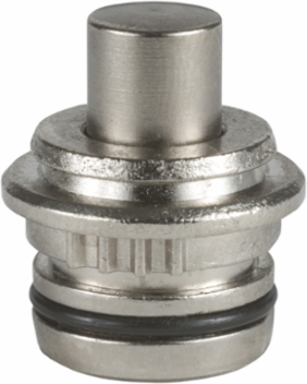

Telemecanique Sensors ZCE106 Limit switch head, Limit switches XC Standard, ZCE, metal end plunger

MPN: ZCE106
PPN: TES-ZCE106
UNSPSC: 39122213

$20.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch head, Limit switches XC Standard, ZCE, metal end plunger

Documentation & Downloads

Specifications

Key Specifications

Type Of Approach	vertical approach, 1 direction
Movement Of Operating Head	linear
Type Of Operator	end plunger spring return metal
Associated Body	ZCD37 \|\| ZCMD37L1 \|\| ZCP27 \|\| ZCT27G11 \|\| ZCMD21C12 \|\| ZCD35 \|\| ZCMD37L2 \|\| ZCMD21L2 \|\| ZCD31 \|\| ZCMD25L5 \|\| ZCT26N12 \|\| ZCMD81L2 \|\| ZCT28G11 \|\| ZCD28 \|\| ZCD27 \|\| ZCT21N12 \|\| ZCMD41L2 \|\| ZCD26 \|\| ZCMD37L5 \|\| ZCMD21M12 \|\| ZCT26P16 \|\| ZCP29M12 \|\| ZCMD41L1 \|\| ZCD29M12 \|\| ZCD21 \|\| ZCMD29L1 \|\| ZCMD29L5 \|\| ZCT21G11 \|\| ZCP21M12 \|\| ZCMD61C12 \|\| ZCMD81L5 \|\| ZCMD39L5 \|\| ZCT27N12 \|\| ZCT25G11 \|\| ZCMD29C12 \|\| ZCMD21L08U78 \|\| ZCMD25L2 \|\| ZCD39 \|\| ZCP26 \|\| ZCP29 \|\| ZCMD69C12 \|\| ZCP39 \|\| ZCP25 \|\| ZCT25N12 \|\| ZCMD25L1 \|\| ZCT28N12 \|\| ZCT27P16 \|\| ZCP35 \|\| ZCD25 \|\| ZCMD39L1 \|\| ZCD29 \|\| ZCT26G11 \|\| ZCD21M12 \|\| ZCMD21L1 \|\| ZCT21P16 \|\| ZCMD41L5 \|\| ZCP37 \|\| ZCP28 \|\| ZCMD21L08R12 \|\| ZCP21 \|\| ZCMD29L2 \|\| ZCT25P16 \|\| ZCMD81L1 \|\| ZCMD39L2 \|\| ZCMD61M12 \|\| ZCP31 \|\| ZCMD21L5 \|\| ZCT28P16
Device Short Name	ZCE

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch head
Product Compatibility	XCMD \|\| XCKT \|\| XCKD \|\| XCKP
Head Type	plunger head

Complementary

Positive Opening	with

Environment

Ambient Air Temperature For Operation	-40-70 °C
Environmental Characteristic	standard environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI110612EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
