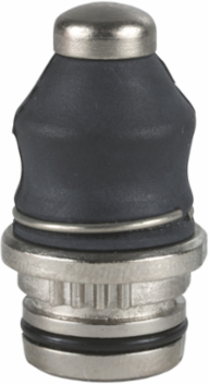

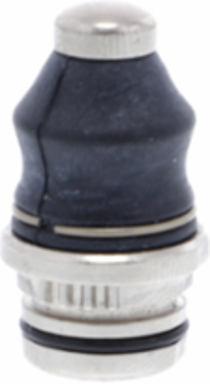

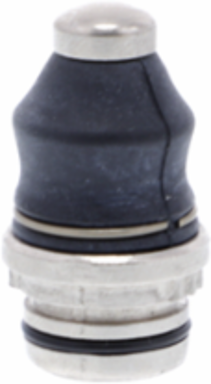

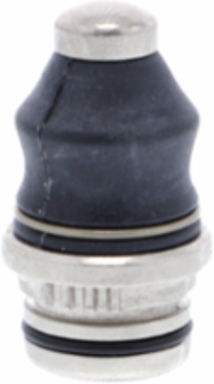

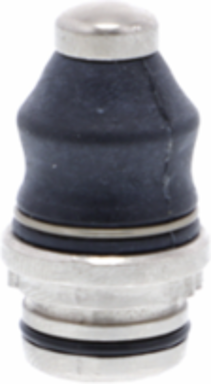

Telemecanique Sensors ZCE11 Limit switch head, Limit switches XC Standard, ZCE, metal end plunger with nitrile boot
- MPN: ZCE11
- PPN: TES-ZCE11
- UNSPSC: 39122213
CAD
$28.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCE standard head has a metal end plunger and a nitrile boot. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | end plunger spring return metal with nitrile boot) |
| Associated Body | ZCT25N12 || ZCMD21L08U78 || ZCD27 || ZCMD21L2 || ZCD28 || ZCT27G11 || ZCD35 || ZCT28N12 || ZCMD61C12 || ZCT21N12 || ZCP37 || ZCP21M12 || ZCP27 || ZCT21P16 || ZCT28P16 || ZCMD69C12 || ZCMD21L1 || ZCMD29L5 || ZCD21 || ZCP28 || ZCMD21M12 || ZCMD25L5 || ZCMD21L08R12 || ZCMD37L1 || ZCMD41L1 || ZCT27P16 || ZCD29M12 || ZCMD81L1 || ZCMD37L2 || ZCD37 || ZCMD21L5 || ZCD29 || ZCP25 || ZCMD39L5 || ZCD39 || ZCMD61M12 || ZCMD29L2 || ZCT26G11 || ZCT28G11 || ZCP35 || ZCMD25L2 || ZCMD81L5 || ZCMD29C12 || ZCMD41L5 || ZCMD39L2 || ZCP21 || ZCT25G11 || ZCT26N12 || ZCMD25L1 || ZCP26 || ZCP31 || ZCP29 || ZCP29M12 || ZCT26P16 || ZCD21M12 || ZCP39 || ZCD25 || ZCMD37L5 || ZCT25P16 || ZCMD21C12 || ZCMD81L2 || ZCMD29L1 || ZCD31 || ZCT21G11 || ZCT27N12 || ZCMD39L1 || ZCMD41L2 || ZCD26 |
| Device Short Name | ZCE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKT || XCMD || XCKP || XCKD |
| Head Type | plunger head |
Complementary
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
