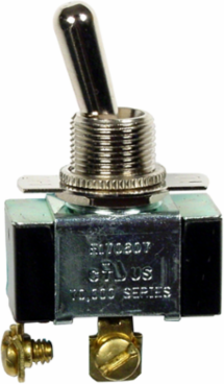

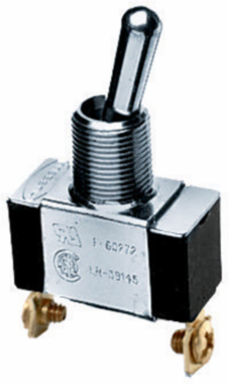

Hubbell Wiring Device-Kellems HBL11 Panel Mount Bat Handle Switch, SPST, 10A 250V, 2.2 Inch x 0.56 Inch x 1.13 Inch
- MPN: HBL11
- UPC: 783585016672
- PPN: HBL-HBL11
- UNSPSC: 39122239
CAD
$16.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Single Throw, 10A 250V/10A 125V, Terminal Screws,
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL11 AutoCAD Drawing
- Current / Amperage Rating
- 10/20 A
- Height
- 1.13 in
- Industry Standard(s)
- UL Listed
- Mounting Method
- Panel Mount
- Amperage Rating
- 10/20 A
- Number of Poles
- Single Pole
- Size
- 2.2 in x 0.56 in x 1.13 in
- Type
- General Purpose
- Weight
- 0.05 lb.
- Action
- SPST
- Number Of Poles
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 11
- Series
- Single Pole/Single Throw
- BOX SIZE
- 3.300x4.800x2.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585016672
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet Height
- 48.200 in
- Pallet Weight
- 469.438 lb.
- NAICS Code
- 3359315102
Country of OriginChina
Dimensions2.2 in x 0.56 in x 1.13 in
Horsepower - Maximum0.75
Length2.2 in
PerformanceEnvironmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
ColorMetallic
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating250/125 VAC
Width0.56 in
ConnectivityScrew Terminals
StyleScrew Terminal
Description - InvoicePANEL SW, SPST, SCREW TERM
Harmonization Code8536509999
MSDS FlagNo
Sub Class CodeA16A240
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.65 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight3.767 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
