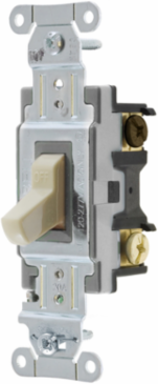

Hubbell Wiring Device-Kellems CS320I Three-Way Toggle Switch 20A 120-277VAC, 4.18 Inch x 1.49 Inch x 1.83 Inch
- MPN: CS320I
- UPC: 783585902159
- PPN: HBL-CS320I
- UNSPSC: 39122211
CAD
$15.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Specification Grade Commercial Series Toggle Switch General Purpose AC, Three Way, 20A 120/277V AC, Side Wired
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | CS320I AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 20 A |
| Height | 1.83 in |
| Length | 4.18 in |
| Standards - RoHS Compliance Status | CM |
| Action | SPDT |
| Color | Ivory |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Width | 1.49 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Three Way |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | CS320IA |
| Current Rating | 20 A |
| Series | General Purpose |
| BOX SIZE | 3.400x9.900x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585902159 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585902158 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Country of Origin | China |
|---|---|
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 20 A |
| Number of Poles | Single Pole |
| Size | 4.18 in x 1.49 in x 1.83 in |
| Type | Toggle |
| Weight | 0.15 lb. |
| Connectivity | Side Wired Only |
| Number Of Poles | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | SWITCH, SPEC, 3W, 20A 120/277V, IV |
| Harmonization Code | 8536509999 |
| MSDS Flag | No |
| Sub Class Code | A16A250 |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.9 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 5.443 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 48.000 in |
| Pallet Weight | 925.000 lb. |
| NAICS Code | 3359315101 |
