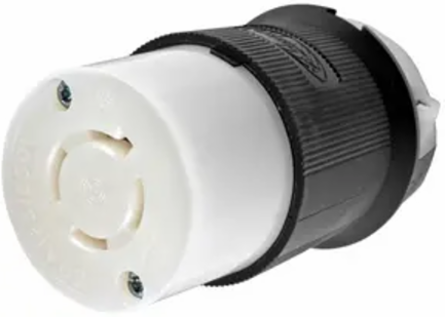

Hubbell Wiring Device-Kellems HBL2413 Twist-Lock Connector Body, 20A 125/250V, 3-Pole 4-Wire, NEMA L14-20R
- MPN: HBL2413
- UPC: 783585038155
- PPN: HBL-HBL2413
- UNSPSC: 39121421
CAD
$69.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20R, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | 3-Pole |
| NEMA Rating | L14-20R |
| Temperature Rating | Maximum 75 C; Minimum -40 C continuous without impact |
| Wire Size | #16 AWG to #8 AWG |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Length | 2.33 in |
| Height | 3.86 in |
| Material | Nylon |
| Terminal Screws | #10-32 Brass |
| Country of Origin | US |
| Voltage | 125/250 VAC |
|---|---|
| Number of Wires | 4-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Range | 0.350 in - 1.150 in |
| Operating Temperature | -40 C to 75 C continuous |
| Weight | 0.35 lb |
| Width | 2.33 in |
| Cord Diameter | 0.350-1.150 in |
| Connectivity | Screw Terminals |
| Compliance | Certified to CSA C22.2 No.42; Listed to UL 498; RoHS Compliant |
