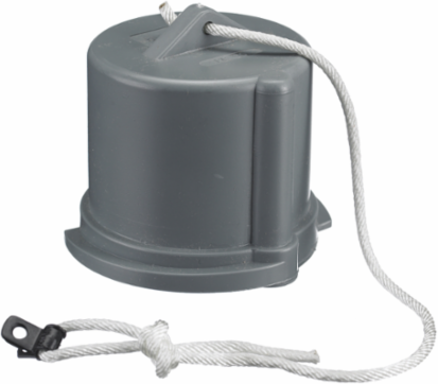

Hubbell Wiring Device-Kellems PC60 Male Closure Cap for 60A All Wire, Gray Non-Metallic, Watertight
- MPN: PC60
- UPC: 783585373607
- PPN: HBL-PC60
- UNSPSC: 39121402
CAD
$140.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 60A All Wire, Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | PC60 AutoCAD Drawing |
|---|---|
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Width | 4.400 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Application | All 60 and 63 Amp |
| Cord Type | All Portable |
| NEMA Rating | Non-NEMA |
| Standard | UL Listed |
| General Literature Asset 1 Display Text | Hubbell PRO Pin & Sleeve Brochure |
| Display Size | Standard Sized |
| Style | Fits all 60 and 63A |
| Description - Invoice | PS, IEC, REPL, CLOSURE-CAP, ALL, 60A |
| Harmonization Code | 3923500100 |
| MSDS Flag | No |
| Sub Class Code | A12A180 |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585373606 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 2 Display Text | IEC Pin & Sleeve Devices |
|---|---|
| Country of Origin | United States |
| Industry Standard(s) | UL Listed |
| Standards - RoHS Compliance Status | CM |
| Color | Gray |
| Environmental Conditions | Watertight |
| Special Features | Watertight |
| Type | Closure Caps |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | CP60 |
| Material - Mounting Hardware | Cord Mounted |
| Series | Accessories |
| BOX SIZE | 5.200x20.200x10.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585373607 |
| Case Weight | 6.206 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.900 in |
| Pallet Weight | 352.350 lb. |
| NAICS Code | 3261992191 |
