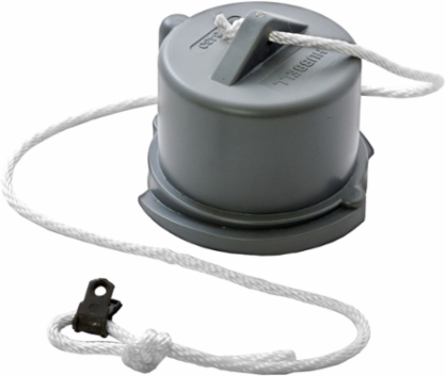

Hubbell Wiring Device-Kellems PC530 Heavy Duty IEC Male Closure Cap for 30A 5-Wire, Watertight Gray Composite
- MPN: PC530
- UPC: 783585375304
- PPN: HBL-PC530
- UNSPSC: 39121402
CAD
$124.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 30A 5- Wire, Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- UL Listed
- Application
- 5-Wire 30 and 32 Amp
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Standard
- UL Listed
- Engineering Drawing 1 Display Text
- PC530 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- CP305
- Material - Mounting Hardware
- Cord Mounted
- Series
- Accessories
- BOX SIZE
- 6.800x10.200x8.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585375304
- Case Weight
- 3.000 lb.
- Lowest Level UOM
- Each
Width3.300 in
PerformanceElectrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ColorGray
Environmental ConditionsWatertight
Special FeaturesWatertight
TypeClosure Caps
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized
StyleFits all 30 and 32A, 5 wire
Description - InvoicePS, IEC, REPL, CLOSURE-CAP, 5W, 30A
Harmonization Code3923500000
MSDS FlagNo
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code3261992191
Certifications
- EU RoHS Indicator
- Yes
