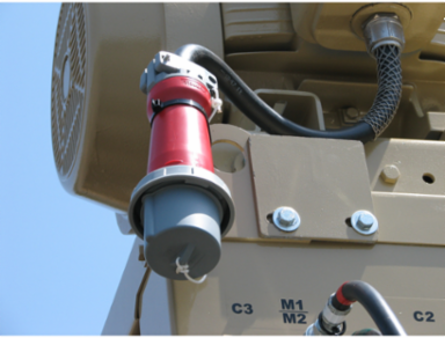

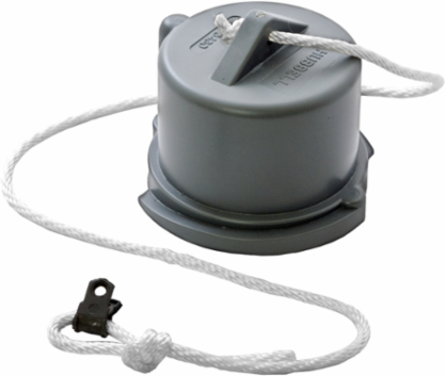

Hubbell Wiring Device-Kellems PC3430 Male Closure Cap, 30A 3 & 4-Wire Gray Non-Metallic, Watertight
- MPN: PC3430
- UPC: 783585374307
- PPN: HBL-PC3430
- UNSPSC: 39121402
CAD
$116.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Male Closure Cap, For 30A 3 and 4-Wire Gray Non-Metallic
Features
- Cap assemblies provide watertight sealing
- Manufactured with non-metallic material
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Color
- Gray
- Environmental Conditions
- Watertight
- Special Features
- Watertight
- Type
- Closure Caps
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized
- Style
- Fits all 30 and 32A, 3 and 4 wire
- Description - Invoice
- PS, IEC, REPL, CLOSURE-CAP, 3/4W, 30A
- Harmonization Code
- 3923500000
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Series
- Accessories
- BOX SIZE
- 7.200x10.100x8.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585374307
- Case Weight
- 2.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 369.600 lb.
- NAICS Code
- 3261992191
Width3.300 in
PerformanceElectrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Moisture Resistance - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Application3 and 4-Wire 30 and 32 Amp
Cord TypeAll Portable
NEMA RatingNon-NEMA
StandardUL Listed
Engineering Drawing 1 Display TextPC3430 AutoCAD Drawing
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585374306
Pallet Length48.000 in
Pallet Width40.000 in
