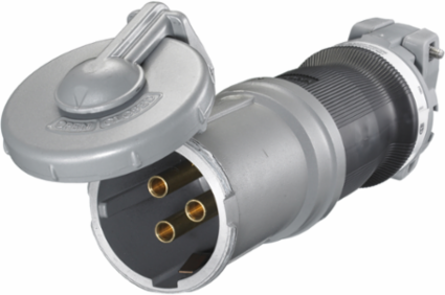

Hubbell Wiring Device-Kellems HBL4100CS1WR Heavy Duty Watertight IEC Pin and Sleeve Female Connector 100A 600V AC, 3-Pole 4-Wire
- MPN: HBL4100CS1WR
- UPC: 783585012223
- PPN: HBL-HBL4100CS1WR
- UNSPSC: 39121421
CAD
$1352.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 100A 600V AC, 3-Pole 4-Wire Grounding Style 1,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 5.750 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Application
- Metallic with Nylon Shroud
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Standard
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Type
- Watertight Connector
- Voltage Rating Description
- 600V AC/250V DC
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard
- Number Of Conductors
- 4-Wire Grounding Style 1
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Current Rating
- 100 A
- Series
- UL 1686 Class 1 Insulgrip®
- BOX SIZE
- 8.000x18.000x10.000 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585012223
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Amperage Rating100 A
Conductor Range#4 AWG to #2 AWG
InsulationInsulated Body
Number of Conductors4-Wire Grounding Style 1
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating600 VAC/250 VDC
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles3-Pole
StyleReversed Service, Style 1
Description - InvoicePS, INS, CONN, 3P4W, 100A 600V, S1 REV
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack24.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
