Hubbell Wiring Device-Kellems HBL4100C9W 100A Watertight IEC Female Connector Body, 3-Pole, 4-Wire
Hubbell Wiring Device-Kellems HBL4100C9W 100A Watertight IEC Female Connector Body, 3-Pole, 4-Wire
- MPN: HBL4100C9W
- UPC: 783585404004
- PPN: HBL-HBL4100C9W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1480.15/ EA
Description

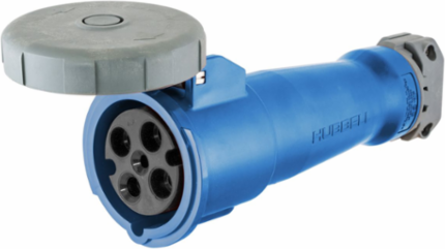

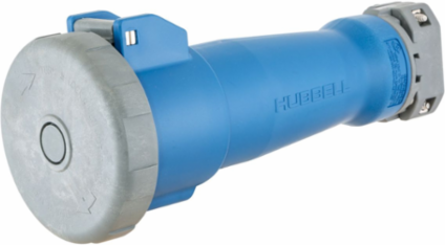

Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL4100C9W AutoCAD Drawing
- General Literature Asset 2 Display Text
- IEC Pin & Sleeve Devices
- Country of Origin
- United States
- Width
- 6.100 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Connections
- Conductor Range
- #3 AWG to #1/0 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 4-Wire Grounding
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 3 Phase 250 VAC
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, CONN, 3P4W, 100A 3P 250V, W/T
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 30.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585404003
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextDual-Certified IEC Pin & Sleeve Devices
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Current / Amperage Rating100 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
Amperage Rating100 A
ColorBlue
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles3-Pole
StandardCSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
TypeWatertight Connector Body
Voltage Rating Description3 Phase 250 VAC
Display SizeStandard
Number Of Conductors4-Wire Grounding
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4100C9W
Material - Mounting HardwareCord Mounted
SeriesHBL Heavy Duty
BOX SIZE13.100x16.600x14.500 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585404004
Case Weight18.995 lb.
Lowest Level UOMEach
Pallet Height39.300 in
Pallet Weight637.350 lb.
