Hubbell Wiring Device-Kellems

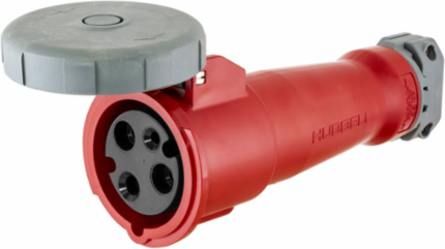

Hubbell Wiring Device-Kellems HBL3100C7W 100A Watertight IEC Pin and Sleeve Female Connector Body, 2-Pole, 480V AC

100A Watertight IEC Pin and Sleeve Female Connector Body, 2-Pole, 480V AC
  • MPN: HBL3100C7W
  • UPC: 783585403052
  • PPN: HBL-HBL3100C7W
  • UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1298.25/ EA

Description

Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

Specifications

Amperage
100 A
Number of Poles
2-Pole
Conductor Range
#3 AWG to #1/0 AWG
Dielectric Voltage Withstand
3000 V AC
Ingress Protection
Type 3R, 3RX, 4X, IP68, IP69K
Material - Cord Clamps
PBT
Material - Cover
PBT
Connectivity
Pressure Terminal Screws
Standard Certifications
CSA Certified; UL Classified IEC 60309-1 IEC 60309-2; UL Listed
Country of Origin
US
Voltage480 V AC
Number of Wires3-Wire
Current InterruptingCertified at full rated current
Temperature Rating-400C to 750C
Material - HousingPBT
Material - GlandsSolid Neoprene
Material - GasketSantoprene
NEMA RatingNon-NEMA
Flammability RatingV-0
ColorRed
