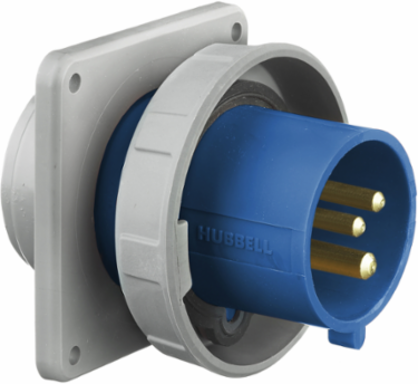

Hubbell Wiring Device-Kellems HBL320B6W IEC Pin and Sleeve Male Flanged Inlet 20A 250V AC Watertight
Hubbell Wiring Device-Kellems HBL320B6W IEC Pin and Sleeve Male Flanged Inlet 20A 250V AC Watertight
- MPN: HBL320B6W
- UPC: 783585403281
- PPN: HBL-HBL320B6W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$258.85/ EA
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 20A 250V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Watertight
Specifications
Specifications
- Country of Origin
- PR
- Width
- 4.800 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Amperage Rating
- 20 A
- Color
- Blue
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 250 VAC
- Wire Size
- #14 AWG to #10 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 316B6W;HBL316B6W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width4.800 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Watertight Connections
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
StandardCSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
TypeWatertight Inlet
Wattage5000
Voltage Rating Description250 VAC
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleStandard Service
Description - InvoiceINLET,2P3W,20A 250V/16A220-240V,4X/69K
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA12A180
Current Rating20 A
SeriesHBL Heavy Duty
BOX SIZE5.500x22.200x9.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585403281
Case Weight8.200 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
