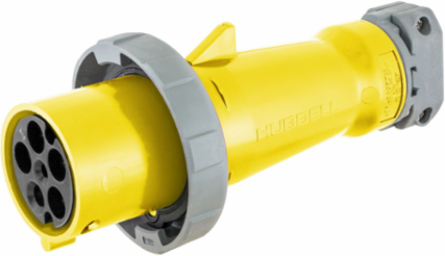

Hubbell Wiring Device-Kellems M5100C9R Marine Grade Heavy Duty Female Connector, 100A, 4-Pole, 120/208V
Hubbell Wiring Device-Kellems M5100C9R Marine Grade Heavy Duty Female Connector, 100A, 4-Pole, 120/208V
- MPN: M5100C9R
- UPC: 783585510033
- PPN: HBL-M5100C9R
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2112.45/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Features
- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
- Reversed Service
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 6.200 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- Marine Wiring Devices
- Conductor Range
- #3 AWG to #1/0 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 5-Wire Grounding
- Special Features
- Reversed Service
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Engineering Drawing 1 Display Text
- M5100C9R AutoCAD Drawing
- General Literature Asset 2 Display Text
- IEC Pin & Sleeve Devices
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Style
- Reverse Service
- Description - Invoice
- MARINE PS CONN, 4P5W, 100A 120/208V,REV
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Series
- Corrosion Resistant
- BOX SIZE
- 13.200x16.500x14.600 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585510033
- Case Weight
- 29.700 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating100 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
Amperage Rating100 A
ColorYellow
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles4-Pole
StandardCSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
TypeWatertight Connector Body
Voltage Rating Description3 Phase Y 120/208 VAC
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
General Literature Asset 3 Display TextPulp & Paper Solutions
Display SizeStandard
Number Of Conductors5-Wire Grounding
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Current Rating100 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
