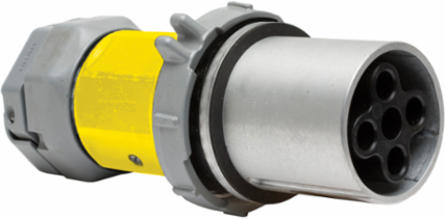

Hubbell Wiring Device-Kellems M5200CS1R Heavy Duty Marine Grade Female Connector, 200A 600V AC, 4-Pole 5-Wire
- MPN: M5200CS1R
- UPC: 783585161846
- PPN: HBL-M5200CS1R
- UNSPSC: 39121421
CAD
$3861.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 200A 600V AC, 4- Pole 5-Wire Grounding Style 1, Reversed Service, Gray
Features
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- Reversed Service
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 8.200 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Amperage Rating
- 200 A
- Conductor Range
- #1 AWG to #250 MCM
- Insulation
- Insulated Body
- Number of Conductors
- 5-Wire Grounding
- Special Features
- Reversed Service
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 600 VAC/250 VDC
- Engineering Drawing 1 Display Text
- M5200CS1R AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Style
- Reversed Service,Corrosion Resistant
- Description - Invoice
- MARINE PS,INS,CONN,4P5W,200A 600V,S1 REV
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating200 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Standards - RoHS Compliance StatusCM
ApplicationMetallic with Nylon Shroud
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles4-Pole
StandardCSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
TypeWatertight Plug
Voltage Rating Description600V AC/250V DC
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard
Number Of Conductors5-Wire Grounding
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating200 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE6.400x16.100x8.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585161846
Case Weight12.150 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
