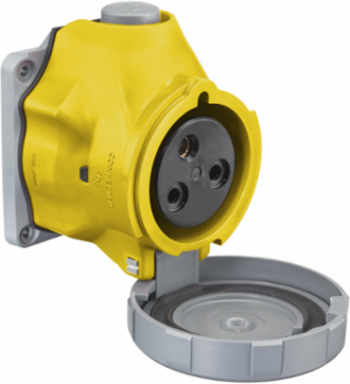

Hubbell Wiring Device-Kellems HBLS330R4W Watertight IEC Pin and Sleeve Switched Receptacle 30A 125V, 2-Pole, IP69k
- MPN: HBLS330R4W
- UPC: 783585550381
- PPN: HBL-HBLS330R4W
- UNSPSC: 39121402
CAD
$770.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Switched, IEC 309,Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 2-Pole
- Operating Temperature Range
- -40°C to 75°C
- Environmental Rating
- UL Type 4X, 12, IP67, IP69K
- Material
- PBT, Solid Neoprene, High-Impact Thermoset, Santoprene, Stainless Steel
- Dielectric Voltage
- 3000 V AC
- Flammability Rating
- V-0
- Color
- Yellow
- Country of Origin
- US
Voltage125 VAC
Number of Wires3-Wire Grounding
Ingress ProtectionIP67, IP69K
Size - Width5.250 in
Current InterruptingCertified for full rated current
Max Working Voltage600 V AC RMS
Standards ComplianceUL Listed, CSA Certified, IEC 60309-1
SeriesAdvantage® Switch-Rated
