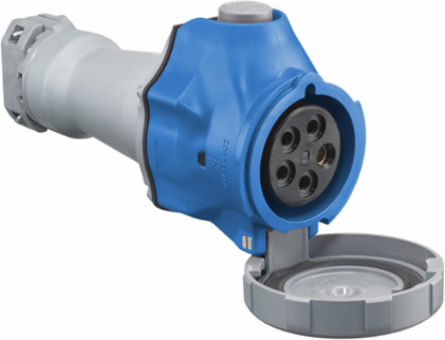

Hubbell Wiring Device-Kellems HBLS530C9W IEC Watertight 30A Switched Female Connector, 4-Pole 5-Wire, NEMA 4X/IP67
Hubbell Wiring Device-Kellems HBLS530C9W IEC Watertight 30A Switched Female Connector, 4-Pole 5-Wire, NEMA 4X/IP67
- MPN: HBLS530C9W
- UPC: 783585550534
- PPN: HBL-HBLS530C9W
- UNSPSC: 39121402
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$908.78/ EA
Description
Heavy Duty Pin and Sleeve Devices, Switched, IEC 309,Female Connector, 30A 120/208V, 4-Pole 5-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
- Amperage
- 30/32 A
- Number of Poles
- 4-Pole
- Ingress Protection
- NEMA 4X, IP67, IP69K
- Material
- PBT, Solid Neoprene, Santoprene
- Impact Resistance
- Per CSA C22.2 No. 182.1 / UL1682
- Color
- Blue
Voltage3 Phase Y 120/208 VAC
Number of Wires5-Wire
Operating Temperature-40°C to 75°C
CertificationUL Listed, CSA Certified, UL Classified IEC 60309-1
SeriesAdvantage® Switch-Rated
Country of OriginUS
