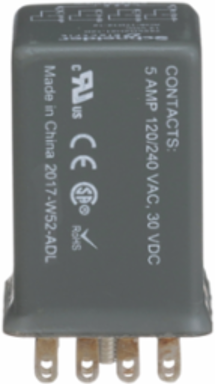

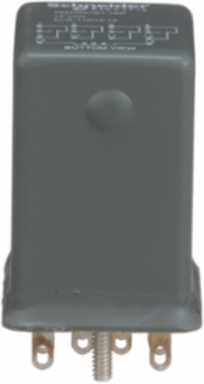

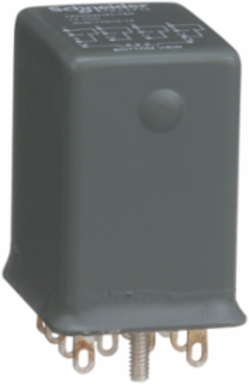

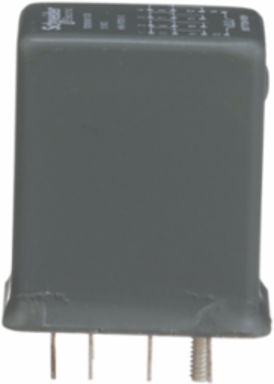

Schneider Electric 782XDXH21-120A Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 120VAC
Schneider Electric 782XDXH21-120A Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 120VAC
- MPN: 782XDXH21-120A
- PPN: SCH-782XDXH21-120A
- UNSPSC: 39122315
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$210.40/ EA
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 4 CO contact configuration mechanical relay with nominal coil voltage of 120Vac and coil resistance of 3900Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Features
- The electromechanical relays help to reduce the size of enclosures and at the same time increase machine reliability
- Compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D
- Simultaneous control of up to 4 separate circuits
- Multiple type of Socket-mounting options; simplified installation and maintenance
- This range offers several terminal types, wide choice of control voltage, and flexible add-on accessories
- Simplified installation and maintenance
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Minimum Switching Current
- 500 mA 12 V AC, 500 mA 12 V DC
- Line Rated Current
- 5 A
- Maximum Resistance
- 3900 Ohm
Control Circuit TypeAC
Maximum Switching Voltage240 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Uc Control Circuit Voltage2
- 120 V AC, 120 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.07257774607703282
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.6 kg CO2 eq., 0.6187602126831798
- Ie Rated Operational Current5
- 5 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load), 5 A at 30 V DC (on resistive load)
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 6 A gG at 400 V coordination type 2 for power circuit
- Average Impedance
- 2 mOhm
- Contacts Type And Composition
- 4 C/O
- Control Type
- without lockable test button
- Environmental Characteristic
- hazardous location T5 40 °C
- Mechanical Durability
- 10000000 cycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Response Time
- 20 ms
- Series Name
- 782H series
- Shock Resistance
- 10 gn
- Status Led
- without
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Ithe Conventional Enclosed Thermal Current2
- 5 A
- Medium Desc
- Hermetically sealed plug-in relays, SE Relays, 5A, 4 CO, 120VAC
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- Commercialised
- Ithe Conventional Enclosed Thermal Current5
- 5 A
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Ie Rated Operational Current25 A at 120 V AC (on resistive load), 5 A at 240 V AC (on resistive load), 5 A at 30 V DC (on resistive load)
Carbon Footprint Of The Distribution Phase A40.0058844896900531705, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.007550849435870834, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B612 kg CO2 eq., 11.972693032015062
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Average Coil Consumption1.20 VA
Contacts Materialsilver alloy contacts
Contacts Usagehermetically sealed
Electrical Durability100000 cycles resistive IEC
Local Signallingwithout LED without lockable test button
Package Weight Lbs45.0 g
Product Or Component Typeplug-in relay
Relay Typehermetically sealed relay
ReturnabilityYes
Shape Of Pinflat (faston type)
Short Circuit Current1 kA
Sustainable PackagingYes
Vibration Resistance6 gn 10-55 Hz)
Connections Terminalsplug in
Stocking FlagY
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US
Catalog Class782H
Connections Terminals3plug in
Uc Control Circuit Voltage5120 V AC
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 12.677466329901199
- Ambient Air Temperature For Storage
- -60-85 °C
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-45-70 °C
Circularity ProfileENVEOLI2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2403024EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
Specifications

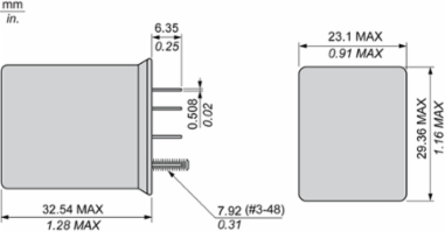

- Depth
- 28.75 mm
