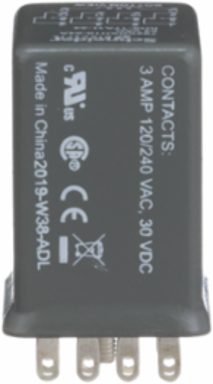

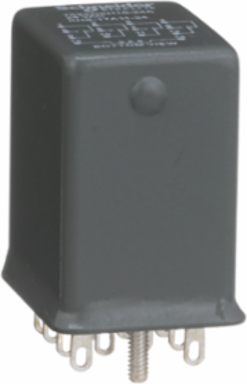

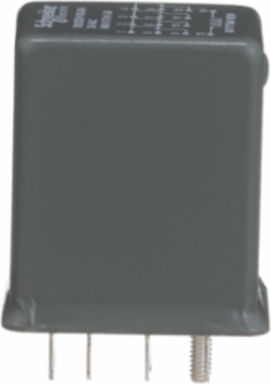

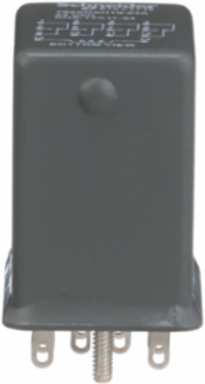

Schneider Electric 782XDXH10-240A Hermetically sealed plug-in relays, SE Relays, 3A, 4 CO, 240VAC
- MPN: 782XDXH10-240A
- PPN: SCH-782XDXH10-240A
CAD
$231.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 3A 4 CO contact configuration mechanical relay with nominal coil voltage of 240Vac and coil resistance of 12000Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The gold flashed contact 4PDT configuration reduces oxidation and increases shelf life and gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China

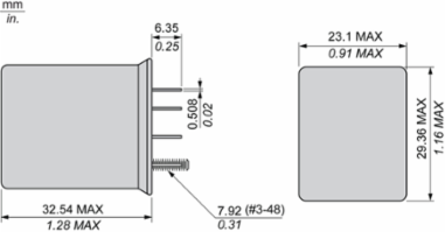

Depth28.75 mm
Complementary Attributes
- Minimum Switching Current
- 100 mA 12 V AC, 100 mA 12 V DC
- Line Rated Current
- 3 A
- Maximum Switching Voltage
- 240 V AC
Control Circuit TypeAC
Maximum Resistance12000 Ohm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Certificate Agency
- UL, CSA, CE
- [Uc] Control Circuit Voltage
- 240 V AC, 240 V
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Associated Fuse Rating
- 6 A gG at 400 V coordination type 2 for power circuit
- Average Impedance
- 2 mOhm
- Contacts Material
- gold flashed fine silver
- Contacts Usage
- hermetically sealed
- Electrical Durability
- 100000 cycles resistive IEC
- Local Signalling
- without LED without lockable test button
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Response Time
- 20 ms
- Series Name
- 782H series
- Shock Resistance
- 10 gn
- Sustainable Packaging
- Yes
- Control Circuit Voltage
- 240 V
- Pep Code
- ENVPEP2403024EN
- Width Nominal
- 22.75 mm
- Connections - Terminals
- plug in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Composition4 C/O
[Ie] Rated Operational Current3 A at 120 V AC (on resistive load), 3 A at 240 V AC (on resistive load), 3 A at 30 V DC (on resistive load)
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Average Coil Consumption1.20 VA
Catalog Class782H
Contacts Type And Composition4 C/O
Control Typewithout lockable test button
Environmental Characteristichazardous location T5 40 °C
Mechanical Durability10000000 cycles
Product Or Component Typeplug-in relay
Relay Typehermetically sealed relay
ReturnabilityYes
Shape Of Pinflat (faston type)
Status Ledwithout
Vibration Resistance6 gn 10-55 Hz)
Control Circuit Type2AC
Height Nominal32.5 mm
[Ithe] Conventional Enclosed Thermal Current3 A
Short-circuit Current1 kA
Package Weight(Lbs)40.823 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -45-70 °C, -45-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-60-85 °C, -60-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC002057
ETIM 9EC002057
