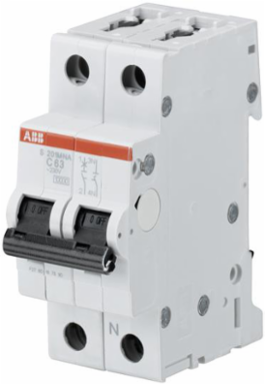

High Performance Miniature Circuit Breaker, 4 Amps, 1 Plus Neutral, 10 kA Interrupt Rating
ABB

ABB S201M-C4NA High Performance Miniature Circuit Breaker, 4 Amps, 1 Plus Neutral, 10 kA Interrupt Rating

  • MPN: S201M-C4NA
  • UPC: 888614234833
  • PPN: ABB-S201M-C4NA

CAD

$136.25

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Miniature Circuit Breaker, Supplementary Protector, Rated Current 4 Amps, 1 Plus Neutral Pole, Interrupt Rating 10 kA, Thermal Magnetic Trip Curve C, Voltage up to 230/400 VAC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, One Delayed Thermal Tripping Mechanism for Overload Protection and an Electromechanic Tripping Mechanism for Short Circuit Protection, UL 1077, CSA 22.2 No. 235

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121603 Miniature circuit breakers
Brand Name
ABB
Application
Designed for Protection and Control of the Circuits Against Overloads and Short-Circuits. Residential, Commerical, Industrial
Voltage Rating
230/400 VAC
Frequency Rating
50/60 Hertz
Interrupt Rating
10 kA
Auxiliary Contacts
Yes
Width
17.5 mm
Operating Temperature
-25 to +55 Degrees Celcius
IGCC4897 Miniature circuit breakers
TypeHigh Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
StandardIEC/EN 60898-1, 60947-2
Amperage Rating4 Amps
Trip TypeC
Number Of Poles1 Plus Neutral
Length69 mm
Height88 mm

Packaging

Outer Quantity
1
Weight Uom
0.58 lbs. Each
Outer Dimensions (inches)1x1x1
