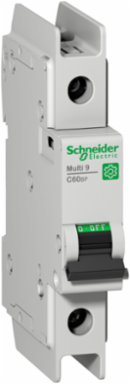

Schneider Electric M9F42130 Miniature Circuit Breaker 1P 30A C Curve 14kA IP20
Schneider Electric M9F42130 Miniature Circuit Breaker 1P 30A C Curve 14kA IP20
- MPN: M9F42130
- PPN: SCH-M9F42130
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$46.82/ EA
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 30A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Specifications
Specifications
- [In] Rated Current
- 30 A 25 °C EN/IEC 60947-2
- Number Of Protected Poles
- 1
- Standards
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Suitability For Isolation
- yes EN/IEC 60947-2
- Device Application
- distribution
- Trip Unit Technology
- thermal-magnetic
Curve CodeC
Network TypeDC || AC
Product CertificationsIEC || CCC || CSA || UL
Product NameMulti9 C60
Breaking Capacity3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V AC UL 489 || 14 kA AIR 120 V AC UL 489 || 10 kA AIR 60 V DC UL 489 || 10 kA AIR 277 V AC CSA C22.2 No 5 || 14 kA AIR 240 V AC CSA C22.2 No 5 || 14 kA AIR 120 V AC CSA C22.2 No 5 || 10 kA AIR 60 V DC CSA C22.2 No 5
Poles Description1P
Device Short NameC60BP
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 0...2000 m
Tropicalisation2 IEC 60068-1
Pollution Degree3 EN/IEC 60947-2
Relative Humidity95-95 % 55-55 °C
Complementary
- [Ics] Rated Service Breaking Capacity
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Contact Position Indicator
- yes
- Mounting Support
- DIN rail
- Wire Stripping Length
- 14 mm for top or bottom connection
- Connections - Terminals
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Mounting Mode
- clip-on
- Mechanical Durability
- 20000 cycles
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- Width
- 18 mm
- Depth
- 72 mm
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Height103 mm
Earth-Leakage Protectionwithout
9 Mm Pitches2
Control Typetoggle
[Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
Electrical Durability10000 cycles
Local SignallingON/OFF indication
Colourgrey
Provision For Padlockingpadlockable
Tightening Torque3.5-3.5 N.m top or bottom
[Ue] Rated Operational Voltage240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
