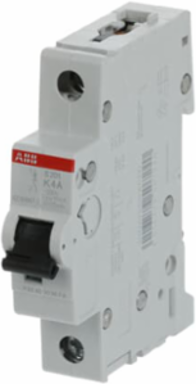

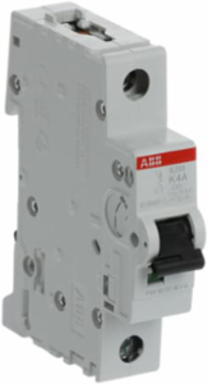

ABB S201-K4 S201-K4 Miniature Circuit Breaker - 1P - K - 4 A
- MPN: S201-K4
- UPC: 662019168623
- PPN: ABB-S201-K4
- UNSPSC: 39121603
CAD
$47.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Specifications
Installation
| Instructions and Manuals | 2CDS207104P0002 |
|---|
Dimensions
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Height | 88 mm |
| Product Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| Product Net Width | 17.5 mm |
|---|---|
| Product Net Depth / Length | 69 mm |
| Pole Net Weight | 0.125 kg |
| Dimension Diagram | 2CDC022007F0010 |
ABB EcoSolutions
| ABB EcoSolutions | Yes |
|---|
Technical
| Standards | IEC/EN 60898-1IEC/EN 60947-2UL 1077 |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 230 / 400 V ACacc. to IEC 60947-2 230 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Dielectric Test Voltage | 50/60 Hz, 1 min: 2 kV |
| Rated Current (In) | 4 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (133 V AC) 20 kA(230 V AC) 10 kA(24 V DC) 20 kA(60 V DC) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (133 V AC) 15 kA(230 V AC) 7.5 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 20000 AC cycle |
| Number of Poles | 1 |
| Overvoltage Category | III |
| Mounting Type | DIN-Rail |
| Actuator Marking | I / O |
| Housing Material | Insulation Group II, RAL 7035 |
| Mounting Position | any |
| Accessories Available | Yes |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Tripping Characteristic | K |
|---|---|
| Operational Voltage | Maximum (Incl. Tolerance) 253 V ACMaximum (Incl. Tolerance) 72 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Short-Circuit Capacity | (AC) 6 kA(DC) 6 kA(230 V AC) 6 kA(400 V AC) 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA(400 V) 10 kA |
| Frequency (f) | 50 Hz |
| Power Loss | 1.7 Wat Rated Operating Conditions per Pole 1.7 W |
| Contact Position Indication | Red ON / Green OFF |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Recommended Screw Driver | Pozidriv 2 |
| Connecting Capacity | Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm² |
| Wire Stripping Length | 12.5 mm |
Eco Transparency
| Environmental Product Declaration - EPD | 9AKK108467A7832 |
|---|
Classifications
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CN8 | 8536 20 10 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| EPLAN Function Definition | Circuit breaker / Single circuit breaker / Circuit breaker 1_2 |
|---|---|
| WEEE B2C / B2B | Business To Business |
| eClass | V11.0 : 27141901 |
| Object Classification Code | F |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
|---|---|
| Pollution Degree | 3 |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK107492A1906 |
| Degree of Protection | IP20Enclosure with Cover IP40 |
|---|---|
| Environmental Conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| RoHS Information | 2CDK403001D0607 |
| SCIP | e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE) |
Circular Value
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 90 % |
|---|---|
| Offered with Extended Lifetime | Product Durability |
| Sustainable Material Content | 0 % |
|---|---|
| Offered with Takeback Services | Take Back for Recycling |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 60 V DC480Y / 277 V AC |
|---|---|
| Connecting Capacity UL/CSA | Busbar 18-8 AWGConductor 18-4 AWG |
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA(60 V DC) 10 kA(120 V) 10 kA |
|---|---|
| Tightening Torque UL/CSA | 18 in·lb |
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Package Level 1 Gross Weight | 1.295 kg |
| E-Number (Sweden) | 2100693 |
| Package Level 1 Units | carton 10 piece |
|---|---|
| E-Number (Finland) | 3210684 |
