Miniature Circuit Breaker 1P 2A C Curve 10kA IP20
Schneider Electric

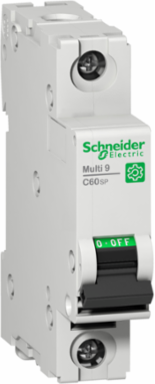

Schneider Electric M9F22102 Miniature Circuit Breaker 1P 2A C Curve 10kA IP20

  • MPN: M9F22102
  • PPN: SCH-M9F22102
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $43.09

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Miniature Circuit Breaker 1P 2A C Curve 10kA IP20

    Features

    • ated for a precise 2 Amps at 240/415V AC or 60V DC, this 1-pole supplementary protector is purpose-built to isolate sensitive, low-amp distribution components. For OEM engineers and industrial control panel builders, this allows you to fine-tune protection parameters for control circuit transformers, PLC power supplies, and pilot device logic, preventing expensive upstream blackouts when minor low-level circuit faults occur.
    • Engineered with a thermal-magnetic C-curve trip profile, this breaker has a magnetic tripping limit set at 8.5 x In 20% for AC lines. This calibrated delay profile safely accommodates the momentary startup inrush currents generated by solenoid valves, control relays, and small fractional motors without causing nuisance tripping, while still providing instantaneous open-circuit protection during an active short.
    • Boasting a robust UL 1077 and CSA C22.2 No 235 supplementary interrupting rating of 14 kA at 240V AC (and an industrial IEC 60947-2 Icu threshold of 10 kA), this 18mm wide module manages high-energy electrical spikes within a highly compact frame. This massive safety headroom limits downstream arc-flash damage and prevents internal contact welding, safeguarding critical automation frameworks from severe localized electrical failures.
    • Equipped with heavy-duty box-tunnel type terminals, this unit accommodates a wide wire cross-section from thin 18 AWG flexible conductors up to 8 AWG rigid lines. Tightening to the factory-specified torque of 22.1 lbf-in (2.5 N-m) creates a compression lock that maintains flat contact force under localized cabinet vibrations, while the IP20 finger-safe housing prevents incidental contact with energized internal parts during field servicing.
    • Occupying exactly two 9mm pitches (18mm total width) on a standard 35mm DIN rail, this clip-on module features a highly space-efficient, low-profile footprint.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States
    Depth72 mm

    Physical Attributes

    Color
    Gray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    2 A 25 °C EN/IEC 60947-2

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Magnetic Tripping Limit
    8.5 x In +/- 20 % AC, 12 x In +/- 20 % DC
    Certificate Agency
    IEC, CCC, UR, CSA
    [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 60 V DC
    Carbon Footprint Of The Distribution Phase [A4]
    0.017471733844708858, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.005669183483119047
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    9 kg CO2 eq., 9.155807692307693
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    LV equipment - Low voltage circuit breaker
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1645
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Commercial
    Connection Pitch
    18 mm between devices
    Control Type
    toggle
    Device Application
    distribution
    Electrical Durability
    10000 cycles
    Local Signalling
    ON/OFF indication
    Mounting Mode
    clip-on
    Number Of Poles
    1P
    Poles Description
    1P
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    miniature circuit-breaker
    Range
    Multi9
    Returnability
    Yes
    Suitability For Isolation
    yes EN/IEC 60947-2
    Tightening Torque
    2.5-2.5 N.m top or bottom
    Total Power Losses
    1.7 W
    Tropicalisation
    2 IEC 60068-1
    Rated Current 3
    2 A
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime, In Kwh
    22.338
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    81 mm
    [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
    Earth-leakage Protection
    without
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Network TypeDC, AC
    [Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 240 V AC, 20 kA 100 % GB/T 14048.2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC, 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 20 kA 100 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC
    Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3505814960287712, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7964694222626515
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdCOMMERCIAL
    Product Kit IdentifierN
    Contact Position Indicatoryes
    Curve CodeC
    Device Short NameC60SP
    Energy Efficiency OptimizedFalse
    Mechanical Durability20000 cycles
    Mounting SupportDIN rail
    Number Of Protected Poles1
    Power Losses Per Pole1.7 W
    Product NameMulti9 C60
    Provision For Padlockingpadlockable
    Range Of ProductMulti9
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint10 kg CO2 eq.
    Trip Unit Technologythermal-magnetic
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1304004EN
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential, In %56
    Width Nominal18 mm
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)115.000 g
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-80 °C, -40-80 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    No
    9 Mm Pitches
    2
    Environmental Disclosure
    ENVPEP1304004EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1304004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
    Halogene PerformanceHalogen free plastic parts product
    China Rohs RegulationX
    Mercury FreeYes
    Carbon Footprint10.418147922479367
    Ambient Air Temperature For Operation-30-70 °C-30-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    miniature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000042
    ETIM 9EC000042
