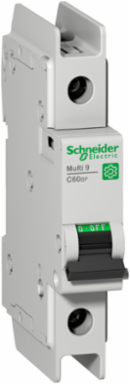

Schneider Electric M9F42104 Miniature Circuit Breaker C60BP 1P 4A C Curve IP20

  • MPN: M9F42104
  • PPN: SCH-M9F42104
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $54.43

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Features

    • Engineered with a convenient clip-on mechanism for standard 35mm DIN rails, this compact 1-pole breaker maximizes premium real estate inside high-density electrical enclosures. For OEM control panel builders, this modular 18mm-wide footprint drastically reduces installation time and simplifies complex wire routing, ensuring your assembly floor stays on schedule.
    • Featuring a precision C-Curve thermal-magnetic trip unit, this device safely tolerates temporary inrush currents between 5 and 10 times its 4-amp continuous rating. This vital specification makes it ideal for protecting small control transformers, lighting loads, and inductive coils, eliminating expensive downtime caused by nuisance tripping during normal equipment startup.
    • This Multi 9 series breaker is rigorously tested to meet universal compliance, carrying simultaneous UL 489, CSA C22.2 No. 5, IEC/EN 60947-2, and CCC certifications. Relying on a single, globally approved component allows machinery builders to standardize their Bill of Materials (BOM) for worldwide distribution, completely bypassing the headache and cost of regional control panel redesigns.
    • Designed to isolate catastrophic faults rapidly, this MCB delivers a robust 14kA short circuit current rating (SCCR) at 240V AC and 10kA at 277V AC. This intense fault-clearing capability ensures severe electrical spikes are stopped instantly, actively shielding your expensive PLCs and sensitive downstream automation hardware from irreversible thermal damage.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, France, Mexico, United States
    Depth72 mm

    Physical Attributes

    ColorGray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current4 A 25 °C EN/IEC 60947-2

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Network TypeDC, AC
    Certificate AgencyIEC, CCC, CSA, UL
    [Ue] Rated Operational Voltage240 V AC 50/60 Hz, 415 V AC 50/60 Hz60 V DC
    Carbon Footprint Of The Distribution Phase [A4]0.017651924411548354, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.005727651257091559
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]11 kg CO2 eq., 10.771538461538462
    Local Publishable Date2026-07-13
    Stocking FlagY
    Device TypeLV equipment - Low voltage circuit breaker
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1645
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationCommercial
    Connection Pitch18 mm between devices
    Control Typetoggle
    Device Applicationdistribution
    Electrical Durability10000 cycles
    Local SignallingON/OFF indication
    Mechanical Durability20000 cycles
    Mounting SupportDIN rail
    Number Of Protected Poles1
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeminiature circuit-breaker
    RangeMulti9
    ReturnabilityYes
    Suitability For Isolationyes EN/IEC 60947-2
    Tightening Torque2.5-2.5 N.m top or bottom
    Total Power Losses2 W
    Tropicalisation2 IEC 60068-1
    Rated Current 34 A
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime In Kwh26.28
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal103 mm
    [Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
    Earth-leakage Protectionwithout
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Tsca RegulationDoes not contain Section 6H Chemical
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Poles Description1P
    [Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 240 V AC15 kA 75 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 60 V DC
    Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.35419713481163834, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.8576524086075522
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdCOMMERCIAL
    Product Kit IdentifierN
    Contact Position Indicatoryes
    Curve CodeC
    Device Short NameC60BP
    Energy Efficiency OptimizedFalse
    Magnetic Tripping Limit8.5 x In +/- 20 % AC12 x In +/- 20 % DC
    Mounting Modeclip-on
    Number Of Poles1P
    Power Losses Per Pole2 W
    Product NameMulti9 C60
    Provision For Padlockingpadlockable
    Range Of ProductMulti9
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint12 kg CO2 eq.
    Trip Unit Technologythermal-magnetic
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1304004EN
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %56
    Width Nominal18 mm
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)122.000 g
    Take-backNo
    Customs Code8536200040

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
    Halogene PerformanceHalogen free plastic parts product
    China Rohs RegulationX
    Mercury FreeYes
    Carbon Footprint12.046897537100103
    Ambient Air Temperature For Operation-30-70 °C-30-70 °C
    Eu Rohs DirectiveCompliant
    Ip Degree Of ProtectionIP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1304004EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Silicon FreeNo
    9 Mm Pitches2
    Environmental DisclosureENVPEP1304004EN
    Halogen Content PerformanceHalogen free plastic parts product
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeminiature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8EC000042
    ETIM 9EC000042
    Miniature Circuit Breaker C60BP 1P 4A C Curve IP20
