Greenlee HVA-2000H High Voltage Ammeter 2000A with LED Display, 4 Inch x 6.6 Inch x 11.5 Inch Dimensions
- MPN: HVA-2000H
- UPC: 783310557043
- PPN: GRN-HVA-2000H
- UNSPSC: 41113637
CAD
$3581.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

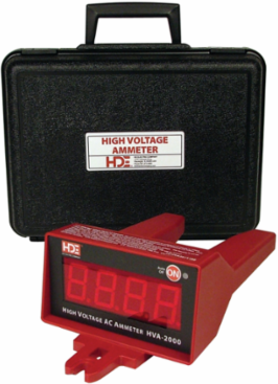

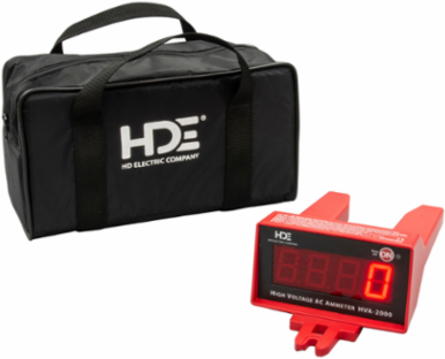

High Voltage Ammeter 2000A with LED Display, 4 Inch x 6.6 Inch x 11.5 Inch Dimensions
Features
- Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
- Stores the last 4 readings
- Dual measurement modes, peak hold and real time
- Takes spot-load checks with ease
- Verifies phases are balanced
- Versatile for overhead and underground applications
- Compact, lightweight design
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Type | Ammeter |
| Voltage Rating | 0 - 500kV line-to-ground |
| Accuracy | 50-60Hz - 1–10A – 1% +/-2 counts, 11–100A – 1% +/-3 counts, 101–500A – 1% +/-6 counts, 501–2000A – 1% +/-8. 252-49Hz and 61-500Hz - 1–10A – 2% +/-3 counts, 11–100A – 2% +/-4 counts, 101–500A – 2% +/-6 counts, 501–2000A – 2% +/-8 counts |
| Operating Temperature | -20°F to +140°F (-29°C to +60°C) |
| Frequency Rating | 25 - 500Hz |
| Sub Brand | HDE |
|---|---|
| Model | HVA-2000 |
| Amperage Rating | 1 -2000A |
| Display | LED display |
| Dimensions | 4”H x 6.6”W x 11.5”L |
| Included | HVA-2000 Ammeter, CS-HVA Carrying Case |
