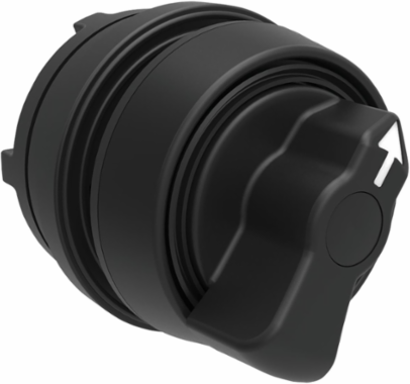

Killark HKH2PSMMRH Selector Switch 2 Position Momentary Right, NEMA 3, 4, 4X, 12, 13
- MPN: HKH2PSMMRH
- UPC: 783936114019
- PPN: HBL-HKH2PSMMRH
CAD
$166.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HKH 2 Position Selector Switch Momentary Right Contact, Horizontal
Features
- Actuator for use with HKH Din Rail and Panel Mounted contact blocks for Type 3, 4, 4X, 12, 13 and IP66 applications.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Key Specifications
- Country of Origin
- China
- Operating Temperature Range Celcius
- -40°C to 55°C
- Actuator
- Selector Switch 2 Position Momentary Right Maintained Left
- Nema Rating
- 3, 4, 4X, 12, 13
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2 POS SEL SWT MOMENTARY RIGHT, HORIZ
- Harmonization Code
- 8536509065
- MSDS Flag
- No
- UL File Number
- E12379
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 20
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class II, Division 1, Groups E, F, G (Canada Only);Class II, Division 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22
ActionRotary
Frequency Rating50/60 Hz
TypeSelector Switch
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD25D250
SeriesHKH Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs20
Carton - SCC-14 Next Lower Level Sub Pack00783936114019
NAICS Code3359326311
