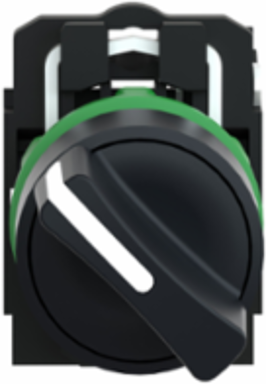

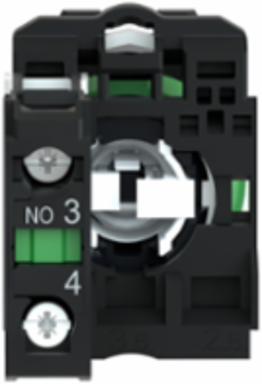

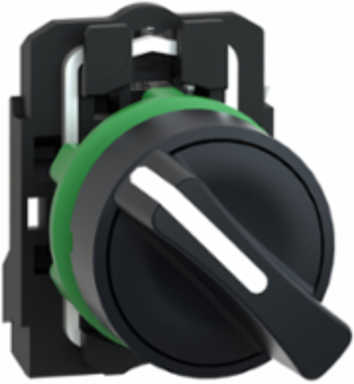

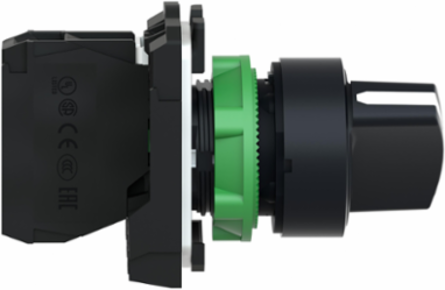

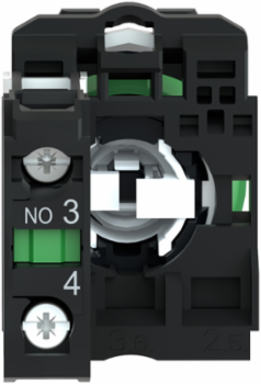

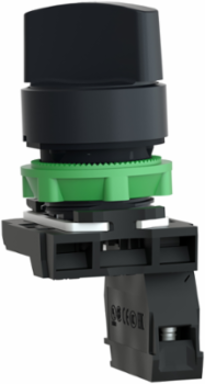

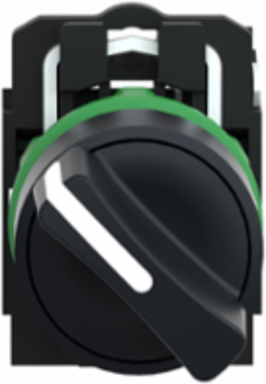

Schneider Electric XB5AD21 Harmony XB5 22mm Selector Switch, 2 Positions, Stay Put, 1NO

MPN: XB5AD21
PPN: SCH-XB5AD21

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$48.52

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

Constructed from high-performance, corrosion-resistant polyamide, this 22mm selector switch is specifically engineered to endure chemical exposure, high-pressure washdowns, and impact without degrading. For industrial facility managers, this means a significantly longer service life in demanding food processing or wastewater plants compared to standard metal alternatives that are prone to oxidation.
Featuring a "stay-put" maintained mechanical state, this switch locks firmly into either the 90 left or right position until manually toggled back. This tactile reliability prevents accidental mode shifts due to heavy machine vibration, providing operators with clear, definitive control over critical functions like "Hand/Auto" or "Start/Stop" cycles.
Boasting the industry s highest ingress protection levels, this Harmony XB5 unit is fully sealed against dust infiltration and powerful, high-temperature water jets. This extreme durability ensures your control panels remain operational during rigorous sanitization protocols, eliminating the risk of internal short circuits and costly production line stoppages caused by moisture ingress.

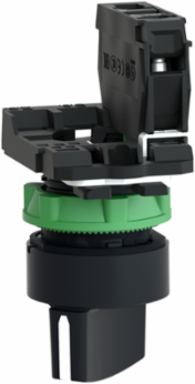

Designed with Schneider s innovative modular system, the operator head snaps onto a mounting collar and 1 NO (Normally Open) contact block with a single screw. This "plug-and-play" architecture allows industrial electricians to perform rapid field replacements or configuration changes in seconds, drastically reducing labor costs and simplifying your spare parts inventory management.
With a mechanical durability rating of 1,000,000 cycles and a B10d value of 1,000,000, this switch is a core component for safety-integrated systems (SIL). This high-reliability rating ensures your safety engineers can accurately calculate MTTFd (Mean Time To Dangerous Failure), guaranteeing the long-term functional safety and compliance of your automated manufacturing cells.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Mexico, United States

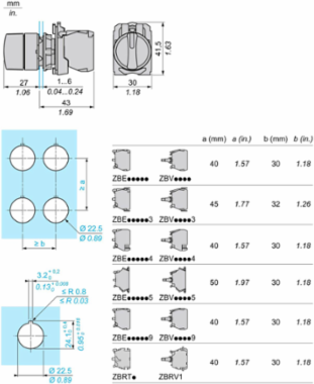

Depth	70 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	dark grey plastic, dark grey plastic
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.077409, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.30007
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	16 %
Compatibility Code	XB5
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Electrical Shock Protection Class	class II conforming to IEC 60536
Mechanical Durability	1000000 cycles
Operator Position Information	2 positions 90°
Positive Opening	without
Product Or Component Type	selector switch
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Torque Value	0.14 N.m NO changing electrical state
Type Of Operator	stay put
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator 3 Type Of Operator	stay put
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This switch's primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %	23
Width Nominal	30 mm
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
[Us] Rated Supply Voltage	230...240 V
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	4.757
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	1.4723
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1141
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	1.2341
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-1.0091
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]	0.1562
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]	1.7454
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	4.9025
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	1.7457
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	4.064
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	1.4723
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1141

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	no, 0
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Contacts Composition	1 NO
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]	0.0057623, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.015006
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.1 kg CO2 eq., 0.08074
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308008EN
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	27 %
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Device Short Name	XB5
Head Type	standard
Mounting Diameter	22.5 mm
Operator Profile	black standard handle
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB5
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Pos Information	2 positions 90°
Pep Code	"ENVPEP2308008EN"
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Height Nominal	42 mm
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Cap/Operator Or Lens Colour	black
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	43.000 g
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]	0.2964
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]	0.1562
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	1.7454
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	125.26
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-1.0748
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	4.757
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	1.4723
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1141
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1.6793
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-1.1734
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]	0.1562
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	1.7454
Customs Code	8536509025

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP67 IEC 60529, IP69, IP69K
Take Back	No
Recycled Metal Content At Cr Level	16 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4789873
Environmental Disclosure	"ENVPEP2308008EN"
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	"ENVPEP2308008EN"
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308008EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
