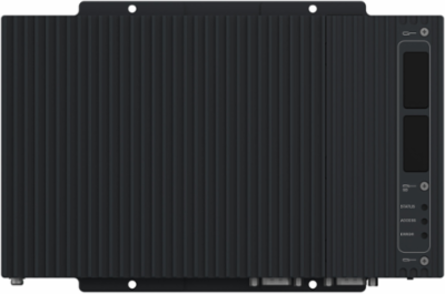

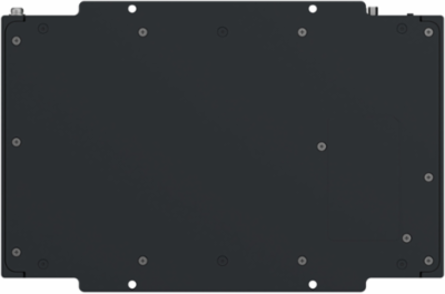

Schneider Electric HMIP6DBB0NA0WNAN00 Modular box PC, Harmony P6, IPC, Intel Atom x6425E, 4 core
- MPN: HMIP6DBB0NA0WNAN00
- PPN: SCH-HMIP6DBB0NA0WNAN00
CAD
$2121.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

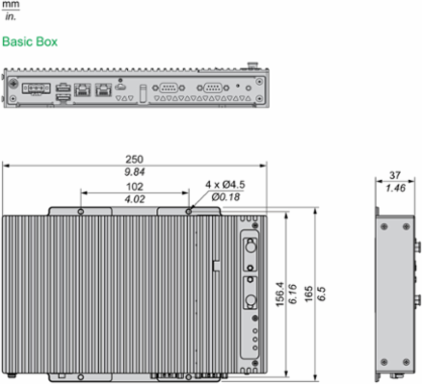

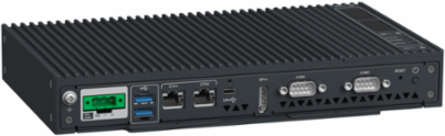

This modular box PC belongs to Schneider Electric's Harmony HMI P6 range. It comes with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 4-core processor. It is equipped with 8 GB RAM DDR4 internal memory. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. This edge box supports 2x Ethernet port, 2x COM (RS232/422/458), 2x USB Type A, 1x USB Type C, and 1x display port. This product works at a power consumption of 45 W and a rated voltage of 12...24 V DC. Its dimensions are 250 mm (width) x 165 mm (height) x 67 mm (depth) and it weighs 1.7 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. This Box PC supports panel mounting. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Depth37 mm
Important Information Attributes
- Software Package
- Node-RED preinstalled, EcoStruxure Machine SCADA Expert run time (on configured offer), EcoStruxure Operator Terminal Expert run time (on configured offer)AVEVA system platform installer (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2858185714285714, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.9 kg CO2 eq., 0.9138228571428572
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 968 kg CO2 eq., 1968.061983471074
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- HMI - Industrial PC
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310030EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2042
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Customer Specific Configuration Possible
- false
- Display Resolution
- 4096 x 2304 pixels at 60 Hz
- Front Installation Possible
- false
- Hard Disk Storage Present
- false
- Number Of Hw Interfaces Industrial Ethernet
- 2
- Number Of Hw Interfaces Serial Rs42
- 2
- Number Of Hw Interfaces Usb
- 2
- Other Memory Media Present
- false
- Product Or Component Type
- modular box PC
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- v5.9.4
- Supply Voltage Limits
- 9-36 V
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Type Of Cooling
- fanless
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- With Optical Drive
- false
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony P6 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the below standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 3942
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; CN
- Height Nominal
- 165 mm
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- true
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 36.4956
- Customs Code
- 8537109170
Certificate AgencyCE, cULus, CSA, UL 61010-2-201, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.9557285714285717, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]140 kg CO2 eq., 140.12857142857143
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Bearing Track Assembly Possiblefalse
Diskette Drive Presentfalse
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3
Graphic Card Presentfalse
Inrush Current30 A
Number Of Hw Interfaces Serial Rs232
Number Of Hw Interfaces Serial Rs4852
Number Of Slots1 slot(s) for optional interface
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductHarmony P6
Shock Resistance147 m/s² X, Y, Z directions for 3 times
Sound Card Presentfalse
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint2 111 kg CO2 eq.
Vibration Resistance9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2
Rail Mounting Possiblefalse
Pep CodeENVPEP2310030EN
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential In %84
Width Nominal250 mm
Io-link Master Presentfalse
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)2.386 kg
Take-backNo
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1792.48
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.0345
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C wall mounting side, 0-55 °C book mounting side0-55 °C flat mounting top, 0-55 °C panel top, 0-50 °C panel with 19" W, 22" W display) side
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 2111.3459248996455
- Circularity Profile
- ENVEOLI2310030EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310030EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to IEC 61131-2, IP66f, IP67f
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2310030EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular box PC
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC001413
ETIM 9EC001413
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
