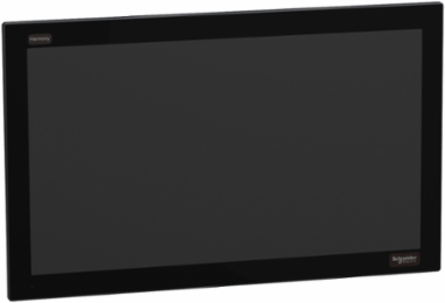

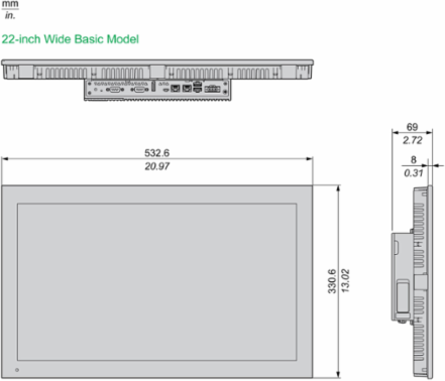

Schneider Electric HMIP6DAB0NA0WNAN00 Panel PC, Harmony P6, IPC, display size 21.5 inch, 4 core
- MPN: HMIP6DAB0NA0WNAN00
- PPN: SCH-HMIP6DAB0NA0WNAN00
CAD
$4242.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This panel PC belongs to Schneider Electric's Harmony HMI P6 range. It is a combination of modular box PC and display with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 4-core processor. It has a 21.5 inch wide LED display with 4096 x 2304 display resolution, 16 million colors and backlight service life of 50,000 hours. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP20, IP66F, IP67F, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product works at a power consumption of 70 W and a rated voltage of 12...24 V DC. Its dimensions are 532 mm (width) x 330 mm (height) x 69 mm (depth), and it weighs 8.2 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. It can be mounted on a panel or VESA mount on the rear of the Box PC. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Depth69 mm
Physical Attributes
- Display Size
- 21.5 inch
Display Color16 million colours
Important Information Attributes
- Product Or Component Type
- modular box PC, touch panel screen
- Certificate Agency
- CE, cULus, CSA, UL 61010-2-201, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 8.937179999999998, 9 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 497 kg CO2 eq., 496.61659999999995
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Aspect Ratio
- 16:9
- Customer Specific Configuration Possible
- false
- Display Type
- LED
- Front Installation Possible
- false
- Hard Disk Storage Present
- false
- Number Of Hw Interfaces Industrial Ethernet
- 2
- Number Of Hw Interfaces Serial Rs42
- 2
- Number Of Hw Interfaces Usb
- 2
- Other Memory Media Present
- false
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- v5.9.4
- Supply Voltage Limits
- 9-36 V
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Type Of Cooling
- fanless
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- With Optical Drive
- false
- Pep Code
- ENVPEP2310001EN
- Pep Verification Date
- 2023-11-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 55
- Width Nominal
- 532.6 mm
- Cut-out Dimensions
- 518.5 (+1/-0) x 316.5 (+1/-0) mm
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- true
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -707.8322
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -3244.002
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 175.6768
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -107.0264
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 334.847
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 115.128
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 6529.906
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 90.487
- Customs Code
- 8537109170
Software PackageNode-RED preinstalledEcoStruxure Machine SCADA Expert (on configured offer), EcoStruxure Operator Terminal Expert (on configured offer), AVEVA system platform (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately)
Carbon Footprint Of The Distribution Phase [A4]1.235248, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2 kg CO2 eq., 2.258526
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 061 kg CO2 eq., 3061.4705882352946
Local Publishable Date2026-03-31
Stocking FlagY
Device TypeHMI - Industrial PC
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2310001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Bearing Track Assembly Possiblefalse
Diskette Drive Presentfalse
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3
Graphic Card Presentfalse
Inrush Current30 A
Number Of Hw Interfaces Serial Rs232
Number Of Hw Interfaces Serial Rs4852
Number Of Slots1 slot(s) for optional interface
Pixel Resolution1920 x 1080
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductHarmony P6
Shock Resistance147 m/s² X, Y, Z directions for 3 times
Sound Card Presentfalse
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint3 571 kg CO2 eq.
Vibration Resistance9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2
Rail Mounting Possiblefalse
Display Color16 million colours
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPS6000 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the relevant standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh6132
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
Height Nominal330.6 mm
[Us] Rated Supply Voltage12...24 V DC power supply
Io-link Master Presentfalse
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)8800 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]494.747
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]1452.958
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]575.927
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]153.6188
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]37.3469
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-744.2402
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]37.3469
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-707.8322
Water Use (M3 Eq) Manufacturing [A1-a3]101.7538
Environment Attributes Main
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2, IP66f, IP67f
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-50 °C panel side
- Circularity Profile
- ENVEOLI2310001EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint3570.5181422352944
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2310001EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular box PC, touch panel screen
Range Of ProductHarmony P6
