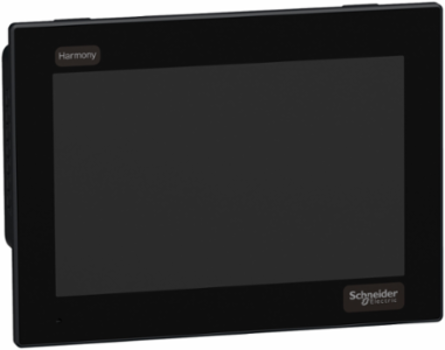

Schneider Electric HMIP6DDB0NA0WNAN00 Panel PC, Harmony P6, IPC, display size 10.1 inch, 4 core
- MPN: HMIP6DDB0NA0WNAN00
- PPN: SCH-HMIP6DDB0NA0WNAN00
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This panel PC belongs to Schneider Electric's Harmony HMI P6 range. It is a combination of modular box PC and display with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 4-core processor. It has a 10.1 inch wide LED display with 4096 x 2304 display resolution, 16 million colors and backlight service life of 50,000 hours. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP20, IP66F, IP67F, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product works at a power consumption of 56 W and a rated voltage of 12...24 V DC. Its dimensions are 268 mm (width) x 198 mm (height) x 67 mm (depth), and it weighs 3.7 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. It can be mounted on a panel or VESA mount on the rear of the Box PC. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, Japan, United States |
|---|
| Depth | 67 mm |
|---|
Physical Attributes
| Display Size | 10.1 inch |
|---|
| Display Color | 16 million colours |
|---|
Important Information Attributes
| Product Or Component Type | modular box PC, touch panel screen |
|---|---|
| Certificate Agency | CE, cULus, UL 61010-2-201, CSA, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4.032629999999999, 4 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 224 kg CO2 eq., 224.0831 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | HMI - Industrial PC |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Aspect Ratio | 16:9 |
| Customer Specific Configuration Possible | false |
| Display Resolution | 4096 x 2304 pixels at 60 Hz |
| Electromagnetic Compatibility | electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3 |
| Graphic Card Present | false |
| Inrush Current | 30 A |
| Number Of Hw Interfaces Serial Rs23 | 2 |
| Number Of Hw Interfaces Serial Rs485 | 2 |
| Number Of Slots | 1 slot(s) for optional interface |
| Pixel Resolution | 1280 x 800 |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Harmony P6 |
| Shock Resistance | 147 m/s² X, Y, Z directions for 3 times |
| Sound Card Present | false |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 2 548 kg CO2 eq. |
| Vibration Resistance | 9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2 |
| Rail Mounting Possible | false |
| Display Color | 16 million colours |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | PS6000 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the relevant standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 4642.8 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; CN |

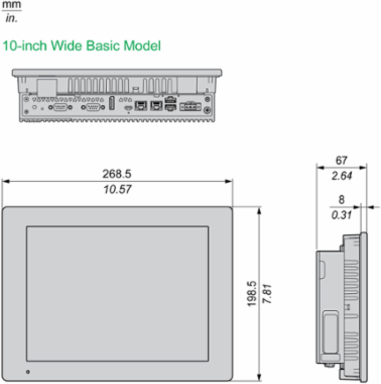

| Height Nominal | 198.5 mm |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| Io-link Master Present | false |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 3.729 kg |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 223.2395 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 2963.256 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -319.3877 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 259.8695 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 69.3158 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -335.8157 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2946.421 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -319.3877 |
| Customs Code | 8537109170 |
| Software Package | Node-RED preinstalled, EcoStruxure Machine SCADA Expert run time (on configured offer), EcoStruxure Operator Terminal Expert run time (on configured offer)AVEVA system platform installer (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately) |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.557368, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1 kg CO2 eq., 1.019091 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 318 kg CO2 eq., 2317.9705882352946 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 224.0831 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2310001EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | false |
| Diskette Drive Present | false |
| Display Type | LED |
| Front Installation Possible | false |
| Hard Disk Storage Present | false |
| Number Of Hw Interfaces Industrial Ethernet | 2 |
| Number Of Hw Interfaces Serial Rs42 | 2 |
| Number Of Hw Interfaces Usb | 2 |
| Other Memory Media Present | false |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Supply Voltage Limits | 9-36 V |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Type Of Cooling | fanless |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| With Optical Drive | false |
| Pep Code | ENVPEP2310001EN |
| Pep Verification Date | 2023-11-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; CN |
| Recyclability Potential In % | 55 |
| Width Nominal | 268.5 mm |
| Cut-out Dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm |
| Rack-assembly Possible | false |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | true |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 224.0831 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 151.0821 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -1463.757 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 79.2688 |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -48.2924 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 51.948 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 151.0821 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 45.9133 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-55 °C panel top0-55 °C panel side, 0-55 °C book mounting side0-55 °C flat mounting top, 0-50 °C panel with 19" W, 22" W display) side |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 2547.662777235295 |
| Circularity Profile | ENVEOLI2310001EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 4X/13 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2310001EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ip Degree Of Protection | IP20 conforming to IEC 61131-2, IP66f, IP67f |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Storage | -20-60 °C-20-60 °C |
| Environmental Disclosure | ENVPEP2310001EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2023-11-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | modular box PC, touch panel screen |
|---|
| Range Of Product | Harmony P6 |
|---|
ETIM
| ETIM 8 | EC001413 |
|---|
| ETIM 9 | EC001413 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
