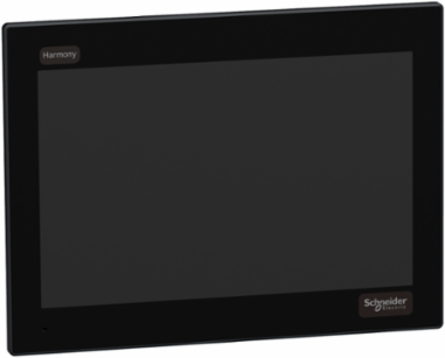

Schneider Electric HMIP6DEB0NA0WNAN00 Panel PC, Harmony P6, IPC, display size 12.1 inch, 4 core, 30 A inrush current
- MPN: HMIP6DEB0NA0WNAN00
- PPN: SCH-HMIP6DEB0NA0WNAN00
CAD
$3263.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This panel PC belongs to Schneider Electric's Harmony HMI P6 range. It is a combination of modular box PC and display with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 4-core processor. It has a 12.1 inch wide LED display with 4096 x 2304 display resolution, 16 million colors and backlight service life of 50,000 hours. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP20, IP66F, IP67F, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product works at a power consumption of 56 W and a rated voltage of 12...24 V DC. Its dimensions are 308 mm (width) x 230 mm (height) x 67 mm (depth), and it weighs 4.3 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. It can be mounted on a panel or VESA mount on the rear of the Box PC. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Depth67 mm
Physical Attributes
- Display Size
- 12.1 inch
Display Color16 million colours
Important Information Attributes
- Product Or Component Type
- modular box PC, touch panel screen
- Certificate Agency
- CE, cULus, UL 61010-2-201, CSA, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4.686569999999999, 5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 260 kg CO2 eq., 260.42089999999996
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Aspect Ratio
- 16:9
- Customer Specific Configuration Possible
- false
- Display Type
- LED
- Front Installation Possible
- false
- Inrush Current
- 30 A
- Number Of Hw Interfaces Serial Rs23
- 2
- Number Of Hw Interfaces Serial Rs485
- 2
- Number Of Slots
- 1 slot(s) for optional interface
- Pixel Resolution
- 1280 x 800
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Harmony P6
- Shock Resistance
- 147 m/s² X, Y, Z directions for 3 times
- Sound Card Present
- false
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 2 716 kg CO2 eq.
- Vibration Resistance
- 9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2
- Rail Mounting Possible
- false
- Pep Code
- ENVPEP2310001EN
- Pep Verification Date
- 2023-11-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 55
- Width Nominal
- 308.5 mm

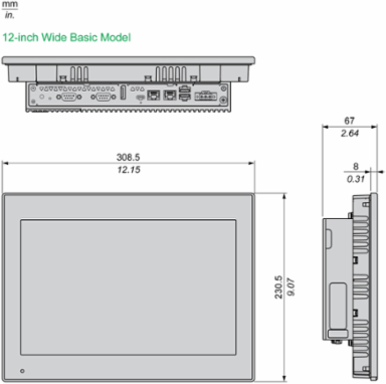

- Cut-out Dimensions
- 295 (+ 1/- 0) x 217 (+ 1/- 0) mm
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- true
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -371.1803
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 92.1232
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -390.2723
- Customs Code
- 8537109170
Software PackageNode-RED preinstalled, EcoStruxure Machine SCADA Expert run time (on configured offer), EcoStruxure Operator Terminal Expert run time (on configured offer)AVEVA system platform installer (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately)
Carbon Footprint Of The Distribution Phase [A4]0.6477519999999999, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1 kg CO2 eq., 1.1843489999999999
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 449 kg CO2 eq., 2449.1764705882356
Local Publishable Date2026-04-11
Stocking FlagY
Device TypeHMI - Industrial PC
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2310001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Bearing Track Assembly Possiblefalse
Display Resolution4096 x 2304 pixels at 60 Hz
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3
Graphic Card Presentfalse
Number Of Hw Interfaces Industrial Ethernet2
Number Of Hw Interfaces Serial Rs422
Number Of Hw Interfaces Usb2
Other Memory Media Presentfalse
Product AvailabilityStock - Normally stocked in distribution facility
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Software Versionv5.9.4
Supply Voltage Limits9-36 V
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Type Of Coolingfanless
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Display Color16 million colours
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPS6000 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the relevant standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh4905.6
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
Height Nominal230.5 mm
[Us] Rated Supply Voltage12...24 V DC power supply
Io-link Master Presentfalse
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)4400 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]259.4405
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]302.0105
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]175.5905
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-371.1803
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C panel top0-55 °C panel side, 0-55 °C book mounting side0-55 °C flat mounting top, 0-50 °C panel with 19" W, 22" W display) side
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 2716.1160415882355
- Circularity Profile
- ENVEOLI2310001EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to IEC 61131-2, IP66f, IP67f
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2310001EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular box PC, touch panel screen
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC001413
