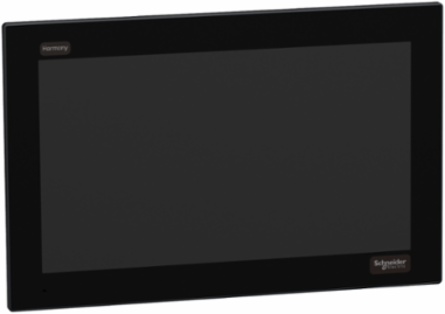

Schneider Electric HMIP6DFB0NA0WNAN00 Panel PC, Harmony P6, IPC, display size 15.6 inch, 4 core
- MPN: HMIP6DFB0NA0WNAN00
- PPN: SCH-HMIP6DFB0NA0WNAN00
CAD
$3427.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This panel PC belongs to Schneider Electric's Harmony HMI P6 range. It is a combination of modular box PC and display with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 4-core processor. It has a 15.6 inch wide LED display with 4096 x 2304 display resolution, 16 million colors and backlight service life of 50,000 hours. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP20, IP66F, IP67F, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product works at a power consumption of 59 W and a rated voltage of 12...24 V DC. Its dimensions are 408 mm (width) x 264 mm (height) x 67 mm (depth), and it weighs 5.7 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. It can be mounted on a panel or VESA mount on the rear of the Box PC. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Depth67 mm
Physical Attributes
- Display Size
- 15.6 inch
Display Color16 million colours
Important Information Attributes
- Product Or Component Type
- modular box PC, touch panel screen
- Certificate Agency
- CE, cULus, UL 61010-2-201, CSA, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6.212429999999999, 6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 345 kg CO2 eq., 345.2091
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 345.2091
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Bearing Track Assembly Possible
- false
- Diskette Drive Present
- false
- Display Type
- LED
- Front Installation Possible
- false
- Inrush Current
- 30 A
- Number Of Hw Interfaces Serial Rs23
- 2
- Number Of Hw Interfaces Serial Rs485
- 2
- Number Of Slots
- 1 slot(s) for optional interface
- Pixel Resolution
- 1366 x 768
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Harmony P6
- Shock Resistance
- 147 m/s² X, Y, Z directions for 3 times
- Sound Card Present
- false
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Total Lifecycle Carbon Footprint
- 2 934 kg CO2 eq.
- Vibration Resistance
- 9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2
- Rail Mounting Possible
- false
- Display Color
- 16 million colours
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- PS6000 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the relevant standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 5168.4
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; CN
- Height Nominal
- 264 mm
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
- Io-link Master Present
- false
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 7.000 kg
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 343.9095
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 4565.016
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 4973.307
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -2254.977
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -98.2053
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 106.7838
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 4645.044
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4539.081
- Customs Code
- 8537109170
Software PackageNode-RED preinstalled, EcoStruxure Machine SCADA Expert run time (on configured offer), EcoStruxure Operator Terminal Expert run time (on configured offer)AVEVA system platform installer (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately)
Carbon Footprint Of The Distribution Phase [A4]0.8586479999999999, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2 kg CO2 eq., 1.5699509999999999
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 580 kg CO2 eq., 2580.3823529411766
Local Publishable Date2026-03-31
Stocking FlagY
Device TypeHMI - Industrial PC
TraceabilityYes
Average Life Duration7 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Aspect Ratio16:9
Customer Specific Configuration Possiblefalse
Display Resolution4096 x 2304 pixels at 60 Hz
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3
Hard Disk Storage Presentfalse
Number Of Hw Interfaces Industrial Ethernet2
Number Of Hw Interfaces Serial Rs422
Number Of Hw Interfaces Usb2
Other Memory Media Presentfalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Software Versionv5.9.4
Supply Voltage Limits9-36 V
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Sustainable PackagingNo
Type Of Coolingfanless
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
With Optical Drivefalse
Pep CodeENVPEP2310001EN
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential In %55

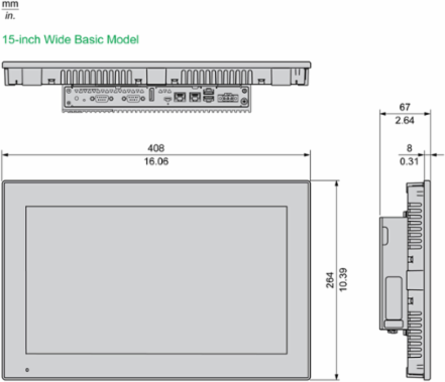

Width Nominal408 mm
Cut-out Dimensions394 (+ 1/- 0) x 250 (+ 1/- 0) mm
Rack-assembly Possiblefalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Wall Mounting/Direct Mounting Possibletrue
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]345.2091
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-492.0297
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]1009.983
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]400.3395
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]122.1168
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-74.3964
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]232.7595
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-492.0297
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C panel top0-55 °C panel side, 0-55 °C book mounting side0-55 °C flat mounting top, 0-50 °C panel with 19" W, 22" W display) side
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 2934.2324819411765
- Circularity Profile
- ENVEOLI2310001EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to IEC 61131-2, IP66f, IP67f
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2310001EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular box PC, touch panel screen
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC001413
ETIM 9EC001413
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
