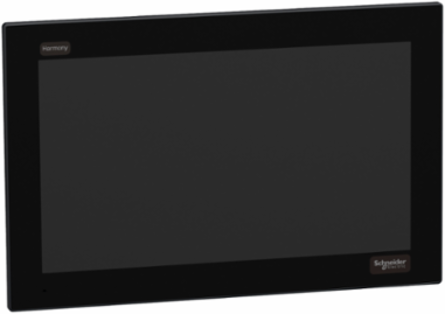

Schneider Electric HMIP6AFB0NA0DNAN00 Panel PC, Harmony P6, IPC, display size 15.6 inch, 2 core
- MPN: HMIP6AFB0NA0DNAN00
- PPN: SCH-HMIP6AFB0NA0DNAN00
CAD
$3267.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This panel PC belongs to Schneider Electric's Harmony HMI P6 range. It is a combination of modular box PC and display with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 2-core processor. It has a 15.6 inch wide LED display with 4096 x 2304 display resolution, 16 million colors and backlight service life of 50,000 hours. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP20, IP66F, IP67F, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product works at a power consumption of 59 W and a rated voltage of 12...24 V DC. Its dimensions are 408 mm (width) x 264 mm (height) x 67 mm (depth), and it weighs 5.7 kg. This product is CE, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, FCC part 15 and UL 61010-2-201 standards. It can be mounted on a panel or VESA mount on the rear of the Box PC. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Depth67 mm
Physical Attributes
- Display Size
- 15.6 inch
Display Color16 million colours
Important Information Attributes
- Product Or Component Type
- modular box PC, touch panel screen
- Certificate Agency
- CE, cULus, UL 61010-2-201, CSA, RCM, UKCA, DNV, ATEX zone 2, ATEX zone 22 dust, cULus Class 1 Division 2, IECEx zone 2, IECEx zone 22
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6.212429999999999, 6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 345 kg CO2 eq., 345.2091
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 345.2091
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Bearing Track Assembly Possible
- false
- Diskette Drive Present
- false
- Display Type
- LED
- Front Installation Possible
- false
- Hard Disk Storage Present
- false
- Number Of Hw Interfaces Industrial Ethernet
- 2
- Number Of Hw Interfaces Serial Rs42
- 2
- Number Of Hw Interfaces Usb
- 2
- Other Memory Media Present
- false
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- v5.9.4
- Supply Voltage Limits
- 9-36 V
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Type Of Cooling
- fanless
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- With Optical Drive
- false
- Pep Code
- ENVPEP2310001EN
- Pep Verification Date
- 2023-11-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 55
- Width Nominal

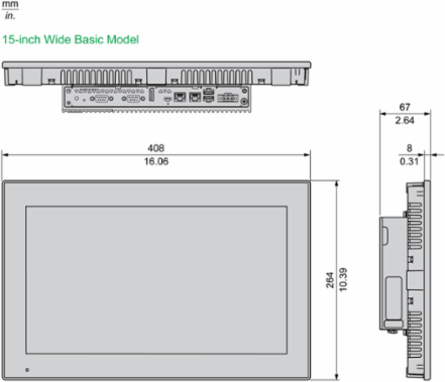

- 408 mm
- Cut-out Dimensions
- 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- true
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 345.2091
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -492.0297
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 1009.983
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 400.3395
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 122.1168
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -74.3964
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 232.7595
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -492.0297
Software PackageNode-RED preinstalled, EcoStruxure Machine SCADA Expert run time (on configured offer), EcoStruxure Operator Terminal Expert run time (on configured offer)AVEVA system platform installer (on configured offer)EcoStruxure secure connect (license to be purchased seperately), Stratus EverRun (exchange partner) (license to be purchased seperately), Trellix (license to be purchased seperately)
Carbon Footprint Of The Distribution Phase [A4]0.8586479999999999, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2 kg CO2 eq., 1.5699509999999999
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 580 kg CO2 eq., 2580.3823529411766
Local Publishable Date2026-05-05
Stocking FlagN
Device TypeHMI - Industrial PC
TraceabilityYes
Average Life Duration7 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Aspect Ratio16:9
Customer Specific Configuration Possiblefalse
Display Resolution4096 x 2304 pixels at 60 Hz
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3
Graphic Card Presentfalse
Inrush Current30 A
Number Of Hw Interfaces Serial Rs232
Number Of Hw Interfaces Serial Rs4852
Number Of Slots1 slot(s) for optional interface
Pixel Resolution1024 x 768
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductHarmony P6
Shock Resistance147 m/s² X, Y, Z directions for 3 times
Sound Card Presentfalse
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint2 934 kg CO2 eq.
Vibration Resistance9.8 m/s² 9-150 Hz) - M.2 SSD - IEC 61131-2
Rail Mounting Possiblefalse
Display Color16 million colours
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPS6000 Series offer an Industrial design, operating within a 0-55°C temperature range for 10 years and consuming 121W in active mode,based on below function:& 10 - USB3.0 Interface (Tyepe-A)& 10 - COM Port (RS232/422/485)& 10 - Ethernet Interface (10/100/1000 Mbit/s)& 10,in accordance with the relevant standards:& 10 - Level 3 EN/IEC 61000-4-2& 10 - IEC 61000-4-4& 10 - EN/IEC 61131-2& 10 - FCC part 15& 10 - Class I division 2 UL 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh5168.4
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
Height Nominal264 mm
[Us] Rated Supply Voltage12...24 V DC power supply
Io-link Master Presentfalse
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)5.790 kg
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]343.9095
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]4565.016
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]4973.307
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-2254.977
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-98.2053
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]106.7838
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]4645.044
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4539.081
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C panel top0-55 °C panel side, 0-55 °C book mounting side0-55 °C flat mounting top, 0-50 °C panel with 19" W, 22" W display) side
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 2934.2324819411765
- Circularity Profile
- ENVEOLI2310001EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to IEC 61131-2, IP66f, IP67f
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP2310001EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-11-07
Psr VersionPSR-0005-ed2-2016 03 29
