Weidmuller 2621610000 HS-FR 2.4-4.8/25 MM Y
- MPN: 2621610000
- PPN: WDM-2621610000
CAD
$1.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

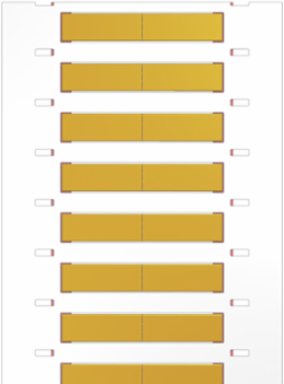

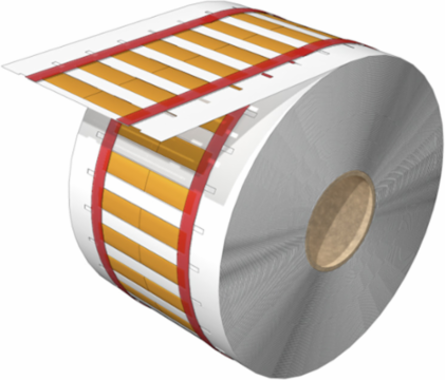

Conductor and cable markers, 2.4 - 4.8 mm, 24.9 x 7.7 mm, yellow
Specifications
General Data
- Colour
- yellow
- Material
- Polyolefine
- Size of labelling field
- 7.7 x 24.9 mm
- compatible printer
- 2599430000 2599440000 1140490000
HalogenNo
Operating temperature range-55...125 °C
Width7.7 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 7.7 mm
- Height
- 24.9 mm
- Depth
- 0.77 mm
- Net weight
- 0.3 g
Width (inches)0.303 inch
Height (inches)0.98 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 2.4 - 4.8 mm
- Conductor O.D., min.
- 2.4 mm
- Conductor cross-section, min.
- 0.75 mm²
- Rate of shrinkage
- 2:1
- Wire connection cross section AWG, max.
- AWG 12
Conductor O.D., max.4.8 mm
Conductor cross-section, max.4 mm²
HalogenNo
Recommended shrinking temperature90 °C
Wire connection cross section AWG, min.AWG 18
