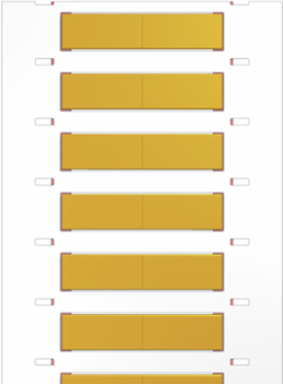

Weidmuller 2621630000 HS-FR 3.2-6.4/25 MM Y
- MPN: 2621630000
- PPN: WDM-2621630000
CAD
$1.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

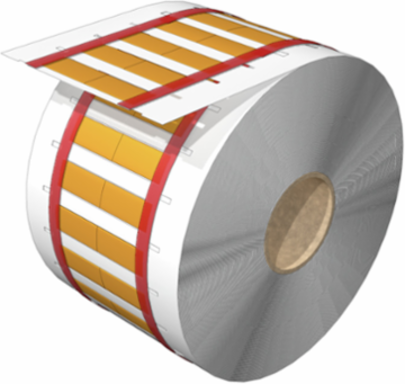

Conductor and cable markers, 3.2 - 6.4 mm, 24.9 x 10.3 mm, yellow
Specifications
General Data
| Colour | yellow |
|---|---|
| Material | Polyolefine |
| Size of labelling field | 10.3 x 24.9 mm |
| compatible printer | 2599430000 2599440000 1140490000 |
| Halogen | No |
|---|---|
| Operating temperature range | -55...125 °C |
| Width | 10.3 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 10.3 mm |
|---|---|
| Height | 24.9 mm |
| Depth | 0.77 mm |
| Net weight | 0.3 g |
| Width (inches) | 0.406 inch |
|---|---|
| Height (inches) | 0.98 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 3.2 - 6.4 mm |
|---|---|
| Conductor O.D., min. | 3.2 mm |
| Conductor cross-section, min. | 1.5 mm² |
| Rate of shrinkage | 2:1 |
| Wire connection cross section AWG, max. | AWG 10 |
| Conductor O.D., max. | 6.4 mm |
|---|---|
| Conductor cross-section, max. | 6 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
| Wire connection cross section AWG, min. | AWG 16 |
