Weidmuller 2621620000 HS-FR 3.2-6.4/25 MM W
- MPN: 2621620000
- PPN: WDM-2621620000
CAD
$1.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

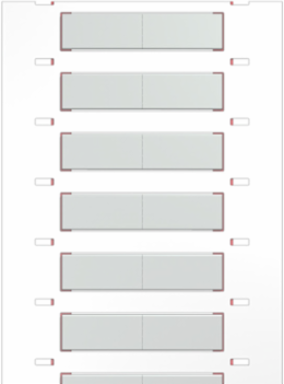

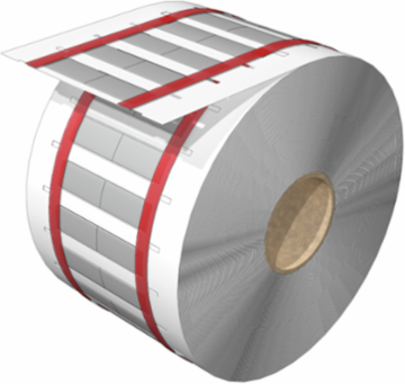

Conductor and cable markers, 3.2 - 6.4 mm, 24.9 x 10.3 mm, white
Specifications
General Data
- Colour
- white
- Material
- Polyolefine
- Size of labelling field
- 10.3 x 24.9 mm
- compatible printer
- 2599430000 2599440000 1140490000
HalogenNo
Operating temperature range-55...125 °C
Width10.3 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 10.3 mm
- Height
- 24.9 mm
- Depth
- 0.77 mm
- Net weight
- 0.3 g
Width (inches)0.406 inch
Height (inches)0.98 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 3.2 - 6.4 mm
- Conductor O.D., min.
- 3.2 mm
- Conductor cross-section, min.
- 1.5 mm²
- Rate of shrinkage
- 2:1
- Wire connection cross section AWG, max.
- AWG 10
Conductor O.D., max.6.4 mm
Conductor cross-section, max.6 mm²
HalogenNo
Recommended shrinking temperature90 °C
Wire connection cross section AWG, min.AWG 16
