Weidmuller 1423330000 HSS-HF 1.2-2.4 EL W13M
- MPN: 1423330000
- PPN: WDM-1423330000
CAD
$104.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

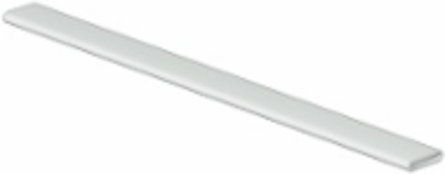

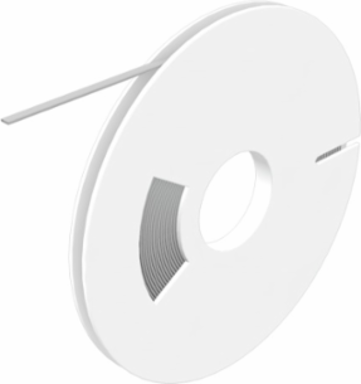

Conductor and cable markers, 1.2 - 2.4 mm, x 4.2 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Length
- 13,000 mm
- Number per roll
- 1
- Width
- 4.2 mm
HalogenNo
MaterialPolyolefine
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 13,000 mm
- Width
- 4.2 mm
- Depth
- 0.5 mm
- Net weight
- 86 g
Length (inches)511.81 inch
Width (inches)0.165 inch
Depth (inches)0.02 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 1.2 - 2.4 mm
- Conductor O.D., min.
- 1.2 mm
- Conductor cross-section, min.
- 0.25 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.2.4 mm
Conductor cross-section, max.0.5 mm²
HalogenNo
Recommended shrinking temperature90 °C
