Weidmuller 1513140000 HSS-HF 1.2-2.4 EL Y30M
- MPN: 1513140000
- PPN: WDM-1513140000
CAD
$265.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

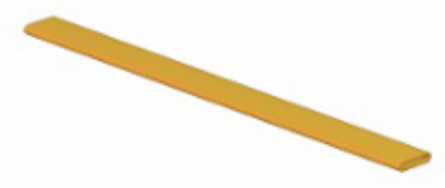

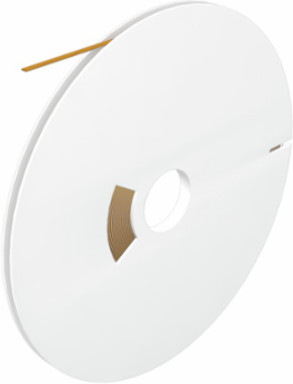

Conductor and cable markers, 1.2 - 2.4 mm, x 4.2 mm, yellow
Documentation & Downloads
Specifications
General Data
| Colour | yellow |
|---|---|
| Length | 30,000 mm |
| Number per roll | 1 |
| Width | 4.2 mm |
| Halogen | No |
|---|---|
| Material | Polyolefine |
| Operating temperature range | -55...105 °C |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 30,000 mm |
|---|---|
| Width | 4.2 mm |
| Depth | 0.5 mm |
| Net weight | 158 g |
| Length (inches) | 1,181.1 inch |
|---|---|
| Width (inches) | 0.165 inch |
| Depth (inches) | 0.02 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 1.2 - 2.4 mm |
|---|---|
| Conductor O.D., min. | 1.2 mm |
| Conductor cross-section, min. | 0.25 mm² |
| Rate of shrinkage | 2:1 |
| Conductor O.D., max. | 2.4 mm |
|---|---|
| Conductor cross-section, max. | 0.5 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
