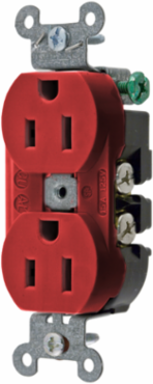

Hubbell Wiring Device-Kellems 5252AR Red Commercial Receptacle, 15A 125V, 2-Pole 3-Wire, NEMA 5-15R
- MPN: 5252AR
- UPC: 783585127668
- PPN: HBL-5252AR
CAD
$8.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red
Features
- Slender/compact design
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.41 in x 1.1 in
- Height
- 1.1 in
- Weight
- 0.3 lb
Display SizeStandard Sized Product
Length3.28 in
Width1.41 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Hubbell-Pro Heavy Duty Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Style
- Smooth Face
- UPC
- 783585127668
ColorRed
Horsepower - Maximum0.5
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
SeriesHubbell-PRO
TypeStandard Duplex
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating Description
- 125 V
ConnectivityBack and Side Wired
Current Rating15 A
PhaseSingle Phase
Wattage1875 W
Logistics
- Carton Quantity
- 10 EA
