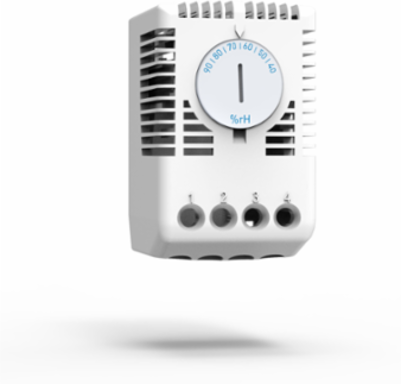

nVent Hoffman ETF200 Hygrostat 65% Fixed, 60x33x38mm, Plastic, IP20 Protection
- MPN: ETF200
- UPC: 783510480868
- PPN: HOF-ETF200
CAD
$371.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This relative humidity hygrostat is available as pre-set, ETF200, or adjustable, ETF2000. This Hygrostat, ETF200, ETF200 item measures 60x33x38mm has a material of Plastic color Light Gray, finish Smooth.
Features
- Description: Mechanical hygrostat designed to control heaters when the pre-set or fixed relative humidity is exceeded. The relative humidity must be kept above the dew point to prevent condensation and corrosion inside the enclosure. Mounting clip for 35 mm DIN rail (EN 60715).
- Material: Plastic according to UL94 V-0
- Switch capacity: 250 V AC, 5 A. DC, 20 W, (30 W ETF2000).
- Operating temperature: 0 °C to +60 °C.
- Service life: > 50,000 cycles.
- Connection: 2 pole terminal for 2.5 mm².
- Protection: IP 20.
- Approvals: CE, EAC, cULus_UL Listed.
- Finish: RAL 7035.
- Pack quantity: 1 piece.
- The adjustable hygrostat allows energy to flow to a device (normally a heater) when the relative humidity level that the user has set, has been exceed, this will range between 40-90%
- The installed devices, such as fan heaters, automatically turn on or off when they are required, which reduces the operational cost of the control panel
- Managing the relative humidity within the enclosure will prevent water condensation from occurring
- Description: ETF200 - Pre-set hygrostat; ETF2000 - Adjustable hygrostat
- Setting range: ETF200 - 65%; ETF2000 - 40% to 90%
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 33
- Protection Rating
- IP20
- Finish
- Smooth
- Color Code
- RAL 7035
Height (H)60
Depth (D)38
MaterialPlastic
ColorLight Gray
Weight0.05
