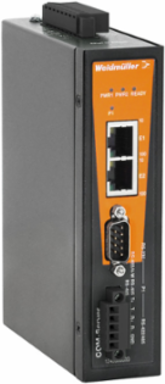

Weidmuller 1285830000 IE-CST-2TX-1RS232/485

MPN: 1285830000
PPN: WDM-1285830000

$965.10

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Serial / Ethernet converter, 2x RJ45, 1x DB9 for RS-232, 1x terminal block for RS-422/485, IP30, -40 °C...75 °C

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS, CULUSEX, DEMKOATEX, EAC, KOREANCERT
UL File Number Search	E141197

ROHS	Conform

Software

Configuration options	Web console, serial console, Telnet console, Windows utility
Windows Real COM driver	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64

Network protocol	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, IGMP

Mtbf

MTBF	262,805 hrs

Database	Telcordia (Bellcore), GB

Dimensions And Weights

Width	36 mm
Height	140 mm
Depth	105 mm
Net weight	475 g

Width (inches)	1.417 inch
Height (inches)	5.512 inch
Depth (inches)	4.134 inch

Environmental Conditions

Humidity	5 to 95 % (non-condensing)
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C

Operating temperature, max.	75 °C
Storage temperature, max.	85 °C

Guarantee

Time interval	5 years

Reliability

Alarm function	Built-in buzzer and RTC

Auto restart on failure	Built-in Watchdog Timer (WDT)

Classifications

ETIM 6.0	EC000310

ETIM 7.0	EC000310

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Technical Data

Housing main material	metal
Type of mounting	Rail

Protection degree	IP30

Emc Conformity And Approvals

EMC standards	EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-5 (surge), EN 61000-4-5 (surge voltage), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8, EN 61000-4-11, EN 55022 Class A, EN 55024, FCC Part 15, Section B, Class A
Free fall	According to IEC 60068-2-32
Shock	according to IEC 60068-2-27

Explosive risk zone	UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T3 Gc
Security	UL508
Vibration	according to IEC 60068-2-6

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-485 2-wire	Data+, Data-, GND

RS-422	TxD+, TxD-, RxD+, RxD-, GND
RS-485 4-wire	TxD+, TxD-, RxD+, RxD-, GND

Interfaces

Ethernet cable protection	1 kV (Level 2) surge protection
Interface standards	RS-232/422/485
RJ45 ports	10/100BaseT(X), Auto MDI/MDI-X port
Serial cable protection	15 kV ESD protection for all signals, 1 kV (Level 2) surge protection
Serial ports	1

Ethernet ports	2
Magnetic isolation protection	1.5 kV built-in
RS-485 data direction control	ADDC® (automatic data direction control)
Serial port	DB9 RS-232, Terminal block for RS-422/485
