Weidmuller 1285840000 IE-CST-2TX-2RS232/485
- MPN: 1285840000
- PPN: WDM-1285840000
CAD
$1071.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

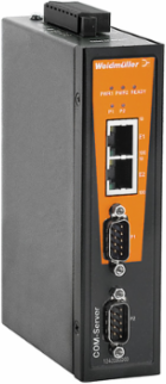

Serial / Ethernet converter, 2x RJ45, 2x DB9 for RS-232/422/485, IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, EAC
- UL File Number Search
- E141197
ROHSConform
Software
- Configuration options
- Web console, serial console, Telnet console, Windows utility
- Windows Real COM driver
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64
Network protocolICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, IGMP
Mtbf
- MTBF
- 262,805 hrs
DatabaseTelcordia (Bellcore), GB
Dimensions And Weights
- Width
- 36 mm
- Height
- 140 mm
- Depth
- 105 mm
- Net weight
- 485 g
Width (inches)1.417 inch
Height (inches)5.512 inch
Depth (inches)4.134 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.75 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Reliability
- Alarm function
- Built-in buzzer and RTC
Auto restart on failureBuilt-in Watchdog Timer (WDT)
Classifications
- ETIM 6.0
- EC000310
ETIM 7.0EC000310
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Technical Data
- Housing main material
- metal
- Type of mounting
- Rail
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-5 (surge), EN 61000-4-5 (surge voltage), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8, EN 61000-4-11, EN 55022 Class A, EN 55024, FCC Part 15, Section B, Class A
- Free fall
- According to IEC 60068-2-32
- Shock
- according to IEC 60068-2-27
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T3 Gc
SecurityUL508
Vibrationaccording to IEC 60068-2-6
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-485 2-wire
- Data+, Data-, GND
RS-422TxD+, TxD-, RxD+, RxD-, GND
RS-485 4-wireTxD+, TxD-, RxD+, RxD-, GND
Interfaces
- Ethernet cable protection
- 1 kV (Level 2) surge protection
- Interface standards
- RS-232/422/485
- RJ45 ports
- 10/100BaseT(X), Auto MDI/MDI-X port
- Serial cable protection
- 15 kV ESD protection for all signals, 1 kV (Level 2) surge protection
- Serial ports
- 2
Ethernet ports2
Magnetic isolation protection1.5 kV built-in
RS-485 data direction controlADDC® (automatic data direction control)
Serial portDB9 for RS-232/422/485
Power Supply
- Connection type
- 1 removable 8-pole terminal block
- Supply voltage, max.
- 48 V DC
- Voltage supply
- 24 V DC, 2 redundant inputs
Current consumption0.250 A at 12 V DC, 0.125 A at 24 V DC
Supply voltage, min.12 V DC
Technology
- Flow control
- RTS/CTS and DTR/DSR (RS-232), XON/XOFF
Serial Communication Parameters
- Baud rate
- 50 bit/s to 921.6 kbit/s
- Flow control
- RTS/CTS and DTR/DSR (RS-232), XON/XOFF
- Stop bits
- 1, 1.5, 2
Data bits5, 6, 7, 8
Paritynone, straight, odd, Space, Mark
