Weidmuller 1318016000 IE-FM6C2UE0600MSD1SD1X
- MPN: 1318016000
- PPN: WDM-1318016000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

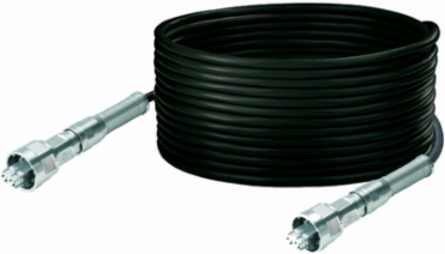

Dragline cable, SC IP 67 bayonet V01 metal, SC IP 67 bayonet V01 metal, 62.5 µm, PUR, 600 m
Documentation & Downloads
Specifications

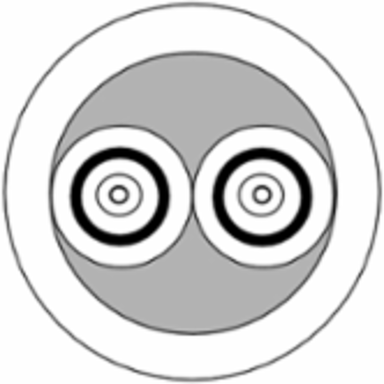

Cable Structure
- Core diameter
- 62.5 µm
- Cable layout
- Break-out dragline
- Sheathing colour
- black
Sheath diameter7.5–8 mm
Material sheathPUR
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 25 mm
- Bending cycles
- 100,000
Min. bending radius, repetitive70 mm
Dimensions And Weights
- Length
- 600 m
- Net weight
- 40,200 g
Length (inches)23.622 inch
Plug
- Connector left
- SC IP 67 bayonet V01 metal
Connector rightSC IP 67 bayonet V01 metal
Classifications
- ETIM 6.0
- EC002607
- eClass 9.0
- 27-06-10-03
- eClass 10.0
- 27-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03
Fibre-Optic
- Attenuation
- 2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
- Fibre type
- GOF, Multimode, OM1
- Return loss (attenuation)
- ≥ 30 dB
Bandwidth200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
Insertion loss≤ 0.4 dB
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -40 °C...85 °C
- Installation temperature
- -55 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-55 °C
Storage temperature-55 °C...85 °C
