Weidmuller 8876360050 IE-FM6Z2VO0005MSD0SD0X
- MPN: 8876360050
- PPN: WDM-8876360050
CAD
$70.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

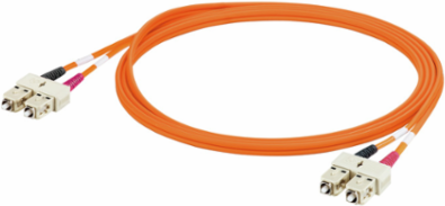

Pre-assembled patch cable, crossover, SC duplex IP 20, SC duplex IP 20, 62.5 µm, PVC, 5 m
Documentation & Downloads
Specifications
Cable Structure
- Core diameter
- 62.5 µm

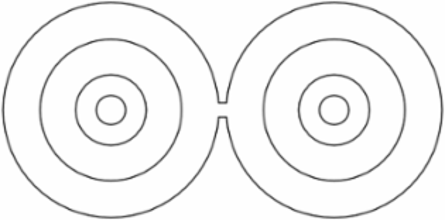

- Cable layout
- ZIPCORD
- Material sheath
- PVC
Sheath diameter3*6 mm
Standard designationsI-V(ZN)Y
Sheathing colourorange
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 30 mm
Min. bending radius, repetitive60 mm
Dimensions And Weights
- Length
- 5 m
- Net weight
- 98 g
Length (inches)0.197 inch
Plug
- Connector left
- SC duplex IP 20
Connector rightSC duplex IP 20
Standards
- Connector standard
- IEC 61754-4
Classifications
- ETIM 6.0
- EC002607
- eClass 9.0
- 27-06-10-03
- eClass 10.0
- 27-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03
UNSPSC30-21-18-01
Fibre-Optic
- Attenuation
- ≤ 3.2 dB/km at 850 nm, ≤ 0.9 dB/km at 1300 nm
- Fibre type
- GOF, Multimode, OM1
Bandwidth≥ 250 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm
Temperatures
- Operating temperature, max.
- 75 °C
- Storage temperature, max.
- 75 °C
- Operating temperature
- -5 °C...75 °C
- Installation temperature
- -5 °C...50 °C
Operating temperature, min.-5 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...75 °C
