Weidmuller 8876440100 IE-FM6D2UE0010MSD0SD0X
- MPN: 8876440100
- PPN: WDM-8876440100
CAD
$138.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

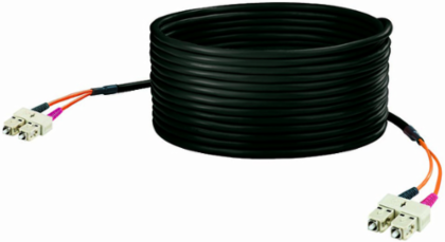

Dragline cable, SC duplex IP 20, SC duplex IP 20, 62.5 µm, PUR, 10 m
Documentation & Downloads
Specifications

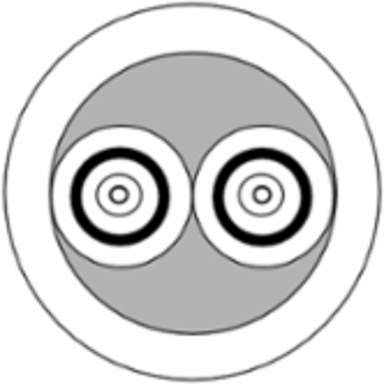

Cable Structure
- Core diameter
- 62.5 µm
- Cable layout
- Break-out dragline
- Sheathing colour
- black
Sheath diameter6 mm
Material sheathPUR
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 25 mm
- Bending cycles
- 100,000
Min. bending radius, repetitive77 mm
Dimensions And Weights
- Length
- 10 m
- Net weight
- 305 g
Length (inches)0.394 inch
Plug
- Connector left
- SC duplex IP 20
Connector rightSC duplex IP 20
Standards
- Connector standard
- IEC 61754-4
Classifications
- ETIM 6.0
- EC002607
- eClass 9.0
- 27-06-10-03
- eClass 10.0
- 27-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03
UNSPSC30-21-18-01
Fibre-Optic
- Attenuation
- 2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
- Fibre type
- GOF, Multimode, OM1
- Return loss (attenuation)
- ≥ 30 dB
Bandwidth200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
Insertion loss≤ 0.4 dB
Temperatures
- Operating temperature, max.
- 80 °C
- Storage temperature, max.
- 80 °C
- Operating temperature
- -40 °C...80 °C
- Installation temperature
- -20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...80 °C
