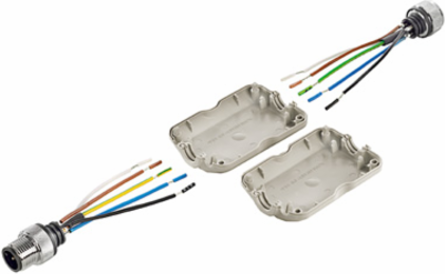

Weidmuller 1918520000 SAI JP 5P LG
- MPN: 1918520000
- PPN: WDM-1918520000
CAD
$85.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI JP 5P LG
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 86 mm |
|---|---|
| Width | 14.4 mm |
| Height | 36 mm |
| Net weight | 45 g |
| Length (inches) | 3.386 inch |
|---|---|
| Width (inches) | 0.567 inch |
| Height (inches) | 1.417 inch |
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
Technical Data Jackpac
| Comparative Tracking Index (CTI) | ≥ 200 |
|---|---|
| Contact surface | Gold-plated |
| Cross-connection | No |
| Insulating material | PBT GF |
| Max. relative humidity during storage | 80 % |
| Number of connection levels | 1 |

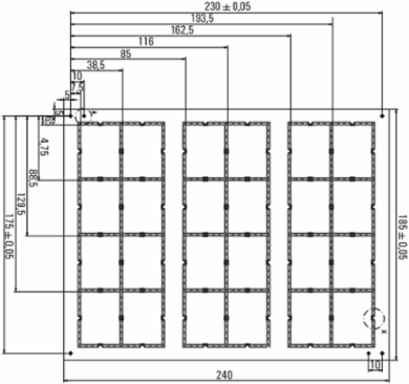

| PCB thickness | 1 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| UL 94 flammability rating | V-0 |
| Contact material | CuZn |
|---|---|
| Contact to terminal rail | No |
| Encapsulation option | Yes |
| Insulating material group | IIIa |
| Number of PCBs per module | 1 |
| Number of connections | 2 |
| Power loss, max. | 0.4 W |
| Type of contact to PCB | Solder connection, via wire |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 90 °C |
|---|
| Operating temperature, min. | -20 °C |
|---|
